Description

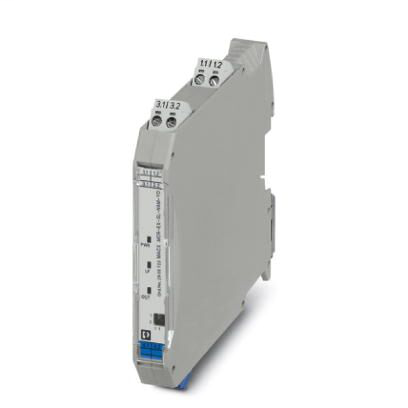

Ex i NAMUR signal conditioners. For operating Ex i proximity sensors and switches in hazardous areas. Passive transistor output (resistive, Yokogawa-compatible), line fault transparency, up to SIL 2 according to IEC 61508; screw connection.Isolation amplifier - MACX MCR-EX-SL-NAM-YO - 2905723
Phoenix Contact 2905723 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C (Any mounting position)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20 (not assessed by UL)
- Maximum altitude
- ≤ 2000 m
- Noise immunity
- EN 61000-6-2
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
Connection data
- Conductor cross section AWG
- 24 - 14
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm²
- Connection method
- Screw connection
- Screw thread
- M3
- Stripping length
- 7 mm
- Torque
- 0.5 Nm - 0.6 Nm
Connection data 2
- Connection name
- Test socket
- Max. diameter
- 2.3 mm
Dimensions
- Depth
- 113.7 mm
- Height
- 112.5 mm
- Width
- 12.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Available input sources
- NAMUR proximity sensors (EN 60947-5-6)
- Line fault detection
- Break 0.05 mA < IIN < 0.35 mA
- Short circuit 100 Ω < RSensor < 360 Ω
- Non-load voltage
- ~ 8 V DC
- Signal input
- Intrinsically safe
- Switching hysteresis
- < 0.2 mA
- Switching points (attenuated)
- < 1.2 mA (blocking)
- Switching points (unattenuated)
- > 2.1 mA (conductive)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Switching output
- Resistive (transistor, passive) compatible with Yokogawa ProSafe DI - SDV144
Power supply
- Nominal supply voltage
- 24 V DC
- Power consumption
- < 600 mW
- Power dissipation
- < 0.6 W
- Supply voltage range
- 9.6 V DC - 30 V DC (12 V DC - 24 V DC (-20 % - +25 %))
Safety characteristic data
- Safety Integrity Level (SIL)
- 1
Safety data
- Additional text
- mixed circuit
- simple circuit
- Group
- IIB/IIIC
- IIC
- IIB/IIA/IIIC
- Max. external capacitance Co
- 3.6 µF
- 1 µF
- 510 nF
- 600 nF
- 26 µF
- 580 nF
- Max. external inductivity Lo
- 300 mH
- 1000 mH
- 100 mH
- 1 mH
- 50 mH
- 10 µH
- 5 mH
- Max. internal capacitance Ci
- negligible
- Max. internal inductance Li
- negligible
- Max. output current Io
- 10 mA
- Max. output power Po
- 25 mW
- Max. output voltage Uo
- 9.6 V
- Safety-related maximum voltage Um
- 253 V AC/DC
Standards and Regulations
- ATEX
- II (1) G [Ex ia Ga] IIC
- II 3G Ex nA IIC T4 Gc X
- II (1) D [Ex ia Da] IIIC
- Conformance
- CE-compliant, additionally EN 61326
- Electromagnetic compatibility
- Conformance with EMC directive
- Group
- IIC
- IECEx
- [Ex ia Ga] IIC
- [Ex ia Da] IIIC
- Ex nA IIC T4 Gc
- Noise emission
- EN 61000-6-4
- UL, USA/Canada
- UL 61010 Listed
