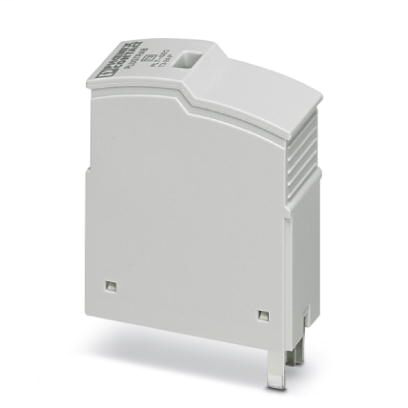

Phoenix Contact 2905232
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Replacement plug for type 3 device protection from the PLUGTRAB SEC T3 product range. 24 V nominal voltage.Type 3 surge protection plug - PLT-SEC-T3-24-P - 2905232
Phoenix Contact 2905232 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -40 °C - 80 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 5 % - 95 %
- Shock (operation)
- 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z)
- Vibration (operation)
- 5g (10 - 150 Hz/20 cycles/axis/X, Y, Z)
Connection data
- Connection method
- pluggable
Dimensions
- Depth
- 44.8 mm
- Height
- 60.9 mm
- Horizontal pitch
- 1 Div.
- Width
- 17.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Combination wave UOC
- 2 kV
- Maximum continuous voltage UC
- 34 V AC
- 34 V DC
- Nominal discharge current In (8/20) µs
- 1 kA
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 24 V AC (TN-S)
- Reference test voltage UREF
- 27 V AC
- Residual current IPE
- ≤ 5 µA
- Response time tA (L-N)
- ≤ 25 ns
- Response time tA (L-PE)
- ≤ 100 ns
- Response time tA (N-PE)
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 1 kA DC
- 1.5 kA AC
- Standby power consumption PC
- ≤ 30 mVA (at UREF)
- ≤ 50 mVA (at UC)
- TOV behavior at UT (L-N)
- 50 V AC (120 min / withstand mode)
- 50 V AC (5 s / withstand mode)
- TOV behavior at UT (L-PE)
- 50 V AC (5 s / withstand mode)
- 50 V AC (120 min / withstand mode)
- Voltage protection level Up (L-N)
- ≤ 0.25 kV
- Voltage protection level Up (L-PE)
- ≤ 0.65 kV
- Voltage protection level Up (N-PE)
- ≤ 0.65 kV
Standards and Regulations
- Standards/specifications
- EN 61643-11 2012
- IEC 61643-11 2011
UL specifications
- Maximum continuous operating voltage MCOV
- 34 V AC
- 34 V DC
- Measured limiting voltage MLV (L+) - G
- 560 V
- Measured limiting voltage MLV (L-) - G
- 560 V
- Measured limiting voltage MLV (L-G)
- 560 V
- Measured limiting voltage MLV (L+) - (L-)
- 290 V
- Measured limiting voltage MLV (L-N)
- 290 V
- Measured limiting voltage MLV (N-G)
- 560 V
- Mode of protection
- N-G
- (L+) - (L-)
- L-N
- L-G
- (L+) - G
- (L-) - G
- Nominal discharge current In
- 1 kA
- Nominal frequency
- 50/60 Hz
- Nominal voltage
- 24 V DC
- Power distribution system
- Single phase
- SPD Type
- 4CA
