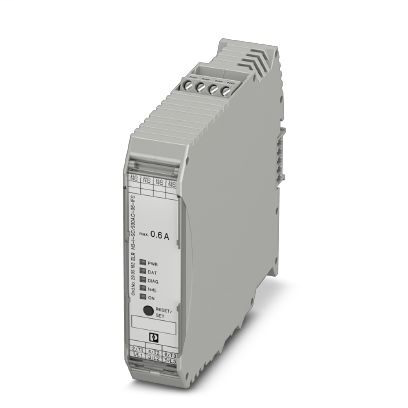

Phoenix Contact 2905162

Ambient conditions

• Ambient temperature (operation)
  • -5 °C - 60 °C (observe derating)
• Ambient temperature (storage/transport)
  • -40 °C - 80 °C
• Degree of protection
  • IP20
• Maximum altitude
  • ≤ 2000 m

Conformance/approvals

• Certificate
  • NRNT.E172140
  • NLDX.E228652
• Designation
  • UL approval

Connection data

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Control circuits
• Screw thread
  • M3
• Stripping length
  • 8 mm
• Torque
  • 0.5 Nm - 0.6 Nm
  • 5 lbf-in. - 7 lbf-in.

Connection data 2

• Conductor cross section AWG
  • 24 - 14
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Screw connection
• Connection name
  • Load circuit
• Screw thread
  • M3
• Stripping length
  • 8 mm
• Torque
  • 0.5 Nm - 0.6 Nm
  • 5 lbf-in. - 7 lbf-in.

Device supply

• Control supply voltage range
  • 19.2 V DC - 30 V DC
• Rated control circuit supply voltage US
  • 24 V DC
• Rated control supply current IS
  • 60 mA
• Type of protection
  • Surge protection
  • Reverse polarity protection

Dimensions

• Depth
  • 114 mm
• Height
  • 107 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Insulation characteristics

• Degree of pollution
  • 2
• Designation
  • Isolation characteristics between the control input and control supply voltage to auxiliary circuit
  • Insulation characteristics between the control input and control supply voltage, and auxiliary circuit to the main circuit
• Insulation
  • Safe isolation (IEC 60947-1) in the auxiliary circuit ≤ 300 V AC
  • Safe isolation (IEC 60947-1)
  • Safe isolation (EN 50178) in the auxiliary circuit ≤ 300 V AC
• Overvoltage category
  • III
• Rated insulation voltage
  • 550 V
• Rated surge voltage
  • 6 kV

Output data load output

• Cooling time
  • 20 min. (for auto reset)
• Leakage current
  • 0 mA
• Load current range
  • 75 mA - 600 mA (see to derating)
• Mains frequency
  • 50/60 Hz
• Operating voltage range
  • 42 V AC - 550 V AC
• Output name
  • AC output
• Rated operating current Ie
  • 0.6 A (AC-53a)
  • 0.6 A (AC-51)
• Rated operating voltage Ue
  • 500 V AC
• Trigger characteristic in acc. with IEC 60947-4-2
  • Class 10
• Type of protection
  • Surge protection

Overspeed tripping

• Operate threshold
  • > 10 A
• Response time
  • < 0.5 s

Standards and Regulations

• Designation
  • Standards/regulations
• Standards/regulations
  • EN 60947-4-2
  • IEC 60947-1

UL data

• Category code
  • NLDX / NRNT
• FLA
  • 0.6 A (480 V AC)
• Group installation
  • 30 A (class CC or J, SCCR 100kA (480 V AC), #24 - 14 AWG max, solid and stranded)
  • 20 A (class RK5, SCCR 5kA (480 V AC), #24 - 14 AWG max. solid and stranded)
• SCCR
  • 5 kA (480 V AC (fuse: 20 A RK5 (standard fault)))
  • 100 kA (480 V AC (fuse: 30 A class CC/30 A class J (high fault)))
