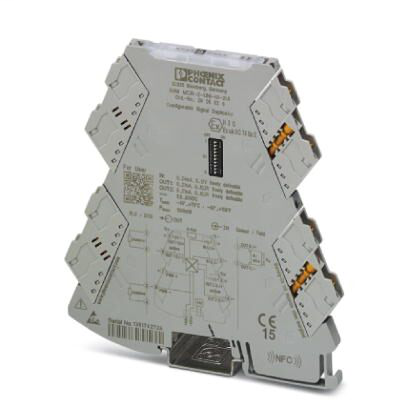

Phoenix Contact 2905025

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20 (not assessed by UL)
• Noise immunity
  • EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG
  • 24 - 12 (flexible)
• Conductor cross section flexible
  • 0.14 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 1.5 mm² (with ferrule)
  • 0.14 mm² - 2.5 mm² (without ferrule)
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 10 mm
• Torque
  • 0.5 Nm - 0.6 Nm

Dimensions

• Depth
  • 119.2 mm
• Height
  • 109.81 mm
• Width
  • 6.2 mm

EMC data

• Designation
  • Conducted interferences
  • Fast transients (burst)
  • Electromagnetic RF field
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-4-6
  • EN 61000-4-4
• Typical deviation from the measuring range final value
  • 0.2 %
  • 2.8 %
  • 0.1 %

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Input data

• Configurable/programmable
  • Yes
• Current input signal
  • 4 mA - 20 mA (via DIP switch)
  • 0 mA - 20 mA (via DIP switch)
  • 0 mA - 10 mA (via DIP switch)
  • 0 mA - 24 mA (can be set via software)
  • 20 mA - 0 mA (via DIP switch)
• Input resistance current input
  • approx. 50 Ω (+ 0.7 V for test diode)
• Input resistance of voltage input
  • > 120 kΩ
• Max. input current
  • 24 mA
• max. input voltage
  • 12 V
• Number of inputs
  • 1
• Voltage input signal
  • 1 V - 5 V (via DIP switch)
  • 0 V - 12 V (can be set via software)
  • 2 V - 10 V (via DIP switch)
  • 0 V - 5 V (via DIP switch)
  • 0 V - 10 V (via DIP switch)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Current output signal
  • 0 mA - 10 mA (via DIP switch)
  • 0 mA - 21 mA (can be set via software)
  • 0 mA - 20 mA (via DIP switch)
  • 20 mA - 0 mA (via DIP switch)
  • 4 mA - 20 mA (via DIP switch)
• Load/output load current output
  • ≤ 600 Ω (per channel)
• Load/output load voltage output
  • ≥ 10 kΩ
• Max. output current
  • 24.6 mA
• Max. output voltage
  • approx. 12.3 V
• Number of outputs
  • 2
• Ripple
  • < 20 mVPP (at 600 Ω)
• Short-circuit current
  • ≤ 25 mA
• Voltage output signal
  • 1 V - 5 V (via DIP switch)
  • 0 V - 5 V (via DIP switch)
  • 0 V - 10.5 V (can be set via software)
  • 0 V - 10 V (via DIP switch)
  • 2 V - 10 V (via DIP switch)

Power supply

• Nominal supply voltage
  • 24 V DC
• Power consumption
  • ≤ 1.5 W (at IOUT = 20 mA, 9.6 V DC, 600 Ω load)
• Supply voltage range
  • 9.6 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
• Typical current consumption
  • 55 mA (24 V DC)
  • 110 mA (12 V DC)

Standards and Regulations

• ATEX
  • II 3 G Ex nA IIC T4 Gc X
• Conformance
  • CE-compliant
• Designation
  • Conducted interferences
  • Electromagnetic RF field
• DNV GL-EMC
  • A
• DNV GL-Enclosure
  • Required protection according to the Rules shall be provided upon installation on board
• DNV GL-Humidity
  • B
• DNV GL-Temperature
  • B
• DNV GL-Vibration
  • A
• Electrical isolation
  • Reinforced insulation in accordance with IEC 61010-1
• Electromagnetic compatibility
  • Conformance with EMC directive
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-5
  • EN 61000-4-3
  • EN 61000-4-4
  • EN 61000-4-6
  • EN 61000-4-2
• UL, USA/Canada
  • Class I, Zone 2, Group IIC T6
  • Class I, Div. 2, Groups A, B, C, D T6
  • UL 508 Listed
