Description

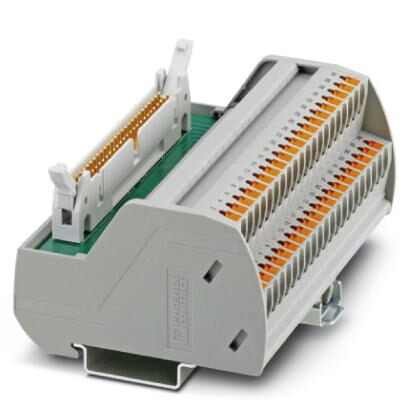

VARIOFACE interface module, with push-in connection for MODICON® TSX Quantum, with MODICON®-specific labeling, for I/O of 32 channelsPassive module - VIP-2/PT/FLK50/MODI-TSX/Q - 2904285
Phoenix Contact 2904285 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
Connection data
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Field level
- Stripping length
- 8 mm
Connection data 2
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Dimensions
- Depth
- 56 mm
- Height
- 72.1 mm
- Width
- 107.9 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Standards and Regulations
- Connection in acc. with standard
- CSA
- Flammability rating according to UL 94
- V0
- Overvoltage category
- II
- Pollution degree
- 2
- Rated surge voltage
- 0.6 kV
- Standards/regulations
- DIN EN 50178
- IEC 60664
Supported controller
- Controller
- Schneider Electric Modicon TSX QUANTUM
- suitable I/O card
- DDI 353
- DAI 453
- ACO 130
- ACO 020
- EHC 105
- AVI 030
- EHC 202
- ACI 030
- AVO 020
- DAI 440
- DDI 853
- ACI 040
- DDI 841
- DDO 353
- ATI 030
- ARI 030
- DDM 390
- DAI 340
