Phoenix Contact 2904251
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

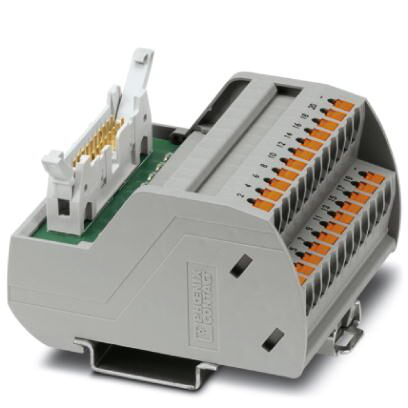

VARIOFACE module, with push-in connection and flat-ribbon cable connector, for mounting on NS 35 rails, with pin strip and short and long locking latches for socket strips, 20-pos., with LEDInterface module - VIP-2/PT/FLK20/LED - 2904251
Phoenix Contact 2904251 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
Connection data
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Field level
- Stripping length
- 8 mm
Connection data 2
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 20
- Pitch
- 2.54 mm
Dimensions
- Depth
- 56 mm
- Height
- 72.1 mm
- Width
- 57.1 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Connection in acc. with standard
- CSA
- Flammability rating according to UL 94
- V0
- Overvoltage category
- II
- Pollution degree
- 2
- Standards/regulations
- IEC 60664
- DIN EN 50178
