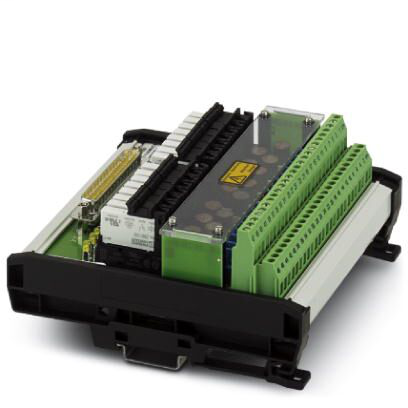

Phoenix Contact 2904105
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
16-channel relay module for Honeywell C300 output modules TDOB01 and TBOB11. On the controller side, the module is controlled on a 37-pos. basis via D-SUB. A screw connection is available (marking: 48...1) on the field side. Module width: 142 mmActive module - UM-D37SUB/M/HC3/16DO/MR/1/SI-L - 2904105
Phoenix Contact 2904105 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 70 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
- Degree of protection
- IP00
Connection data
- Connection method
- D-SUB pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 37
Connection data 2
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 4 mm²
- Connection method
- Screw connection
- Connection name
- Field level
- Number of connections
- 1
- Number of positions
- 50
- Screw thread
- M3
Dimensions
- Depth
- 66 mm
- Height
- 142.5 mm
- Width
- 142 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input voltage range in reference to UN
- 0.9 - 1.1
- Nominal input voltage UN
- 24 V DC
- Status display/channel
- Yellow LED
- Typical input current at UN
- 9 mA
- Typical release time
- 7 ms
- Typical response time
- 5 ms
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact material
- AgSnO
- Contact type
- 1 PDT
- Interrupting rating (ohmic load) max.
- 18 W (60 V DC)
- 48 W (24 V DC)
- 500 VA (250 V AC)
- 23 W (110 V DC)
- 20 W (48 V DC)
- 40 W (220 V DC)
- Limiting continuous current
- 2 A (see derating curve)
- Maximum switching voltage
- 250 V AC/DC
- Minimum switching voltage
- 5 V (at 100 mA)
- Min. switching current
- 100 mA
Standards and Regulations
- Insulation
- Basic insulation
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 260 V AC
- Rated surge voltage
- 4 kV (Safe isolation, reinforced insulation, and 6 kV between input circuit and output contact current paths)
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- HONEYWELL Experion PKS C300/C-Series
- suitable I/O card
- TDOB01 (non-redundant)
- TDOB11 (redundant)
