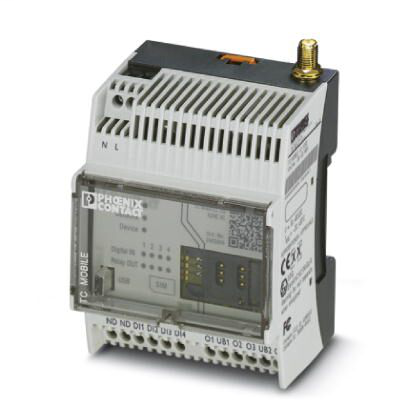

Phoenix Contact 2903806
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
SMS relay and signaling module, monitor digital values via mobile network and switch relay outputs remotely, communication via SMS and GPRS (e-mail transmission, app), supply voltage range 93 V ... 250 V AC.SMS relay - TC MOBILE I/O X200 AC - 2903806
Phoenix Contact 2903806 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- 2000 m
- Ambient temperature (operation)
- -25 °C - 70 °C (SMS mode only, note the derating information in the technical documentation for data connection)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 0 % - 95 %
Conformance/approvals
- Additional text
- Please follow the special installation instructions in the documentation!
- Part 15.107(a), 15.109(a)
- Designation
- FCC
- CE
- ATEX
- Corrosive gas test
- Identification
- CE-compliant
- II 3 G Ex nA nC IIC T4 Gc X
- ISA-S71.04-1985 G3 Harsh Group A
Digital inputs
- Description of the input
- Digital input
- Number of inputs
- 4
- Switching level "0" signal
- 0 V AC - 50 V AC
- Switching level "1" signal
- 90 V AC - 250 V AC
Digital outputs
- Contact type
- N/O contact
- Electrical service life
- 30000 cycles (5 A / 250 V AC)
- 150000 cycles (3 A / 120 V AC)
- 150000 cycles (5 A / 30 V DC)
- Limiting continuous current
- 5 A
- Maximum switching voltage
- 125 V DC
- 250 V AC
- Minimum switching voltage
- 5 V
- Number of outputs
- 4
- Output name
- Relay output
- Switching capacity
- 750 VA
Dimensions
- Depth
- 62 mm
- Height
- 90 mm
- Width
- 72 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Cadmium oxide 1306-19-0
Function
- Web-based management
- yes
Interfaces
- Connection method
- Mini-USB type B, 5-pos.
- Interface 1
- USB 2.0
- Transmission length
- ≤ 3 m (only for configuration and diagnostics)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Power supply
- Conductor cross section AWG max.
- 14
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.50 mm²
- Conductor cross section flexible min.
- 0.20 mm²
- Conductor cross section solid max.
- 2.50 mm²
- Conductor cross section solid min.
- 0.20 mm²
- Max. AWG conductor cross section, flexible
- 14
- Max. current consumption
- 25 mA
- Min. AWG conductor cross section, flexible
- 24
- Supply voltage range
- 93 V AC - 250 V AC (47.5 Hz - 63 Hz)
- Typical current consumption
- 15 mA (230 V AC)
Standards and Regulations
- Comments
- Criterion B
- Conducted noise emission
- Class B, area of application: Industry and residential
- Contact discharge
- ± 6 kV
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Frequency range
- 0.15 MHz - 80 MHz
- 26 MHz - 6 GHz
- Indirect discharge
- ± 6 kV
- Signal
- ± 1 kV (Data line, asymmetrical)
- Standards/regulations
- EN 61000-4-5
- EN 61000-4-6
- EN 50360
- EN 50121-4
- EN 61000-4-11
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
Wireless interface
- Frequency
- 1800 MHz (1 W (EGSM))
- 850 MHz (2 W (EGSM))
- 900 MHz (2 W (EGSM))
- 1900 MHz (1 W (EGSM))
- GPRS
- Multislot Class 10
- Interface description
- GSM / GPRS
