Phoenix Contact 2903601
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

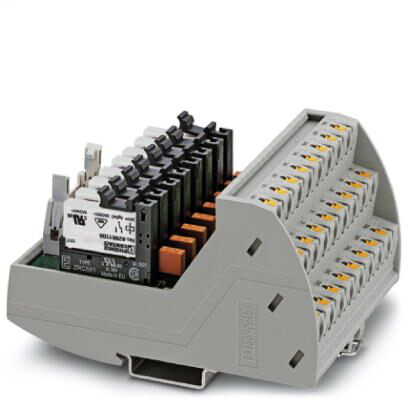

VARIOFACE Professional output module with eight channels, each with a pluggable 1 PDT relay and fuse, for 24 V DCActive module - VIP-8RPT-24DC/21/DO/FU/PLC - 2903601
Phoenix Contact 2903601 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
Connection data
- Connection method
- IDC/FLK pin strip
- Connection name
- Controller level
- Number of connections
- 1
- Number of positions
- 14
- Pitch
- 2.54 mm
Connection data 2
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Field level
- Stripping length
- 8 mm
Dimensions
- Depth
- 63 mm
- Height
- 109.8 mm
- Width
- 87.6 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Input voltage range in reference to UN
- 0.9 - 1.1
- Nominal input voltage UN
- 24 V DC
- Operating voltage display
- Green LED
- Protective circuit/component
- Damping diode
- Status display/channel
- Yellow LED
- Type of protection
- Free-wheeling diode
- Typical input current at UN
- 9 mA
- Typical release time
- 8 ms
- Typical response time
- 5 ms
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Contact material
- AgSnO
- Contact type
- Single contact, 1-PDT
- Error detection (line break / short-circuit)
- no
- Interrupting rating (ohmic load) max.
- 20 W (48 V DC)
- 40 W (220 V DC)
- 120 W (24 V DC)
- 18 W (60 V DC)
- 1250 VA (250 V AC)
- 23 W (110 V DC)
- Limiting continuous current
- 5 A (observe derating)
- Maximum switching voltage
- 250 V AC/DC
- Minimum switching voltage
- 12 V AC/DC
- Min. switching current
- 10 mA
Standards and Regulations
- Connection in acc. with standard
- CSA
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- Emerson DeltaV
- MITSUBISHI MELSEC Q
- GE-FANUC RX3i
- SIEMENS S7-300 / ET 200 M
- MITSUBISHI MELSEC L
- SIEMENS S7-1500
- ALLEN-BRADLEY SLC 500
- ALLEN-BRADLEY PLC 5
- ABB S800 I/O
- ALLEN-BRADLEY ControlLogix
- SIEMENS S7-400
- HONEYWELL Experion PKS C200
- suitable I/O card
- QY82P
- 6ES7 522-1BL00-0AB0
- LY42PT1P
- CPU 313C-2PtP
- 6ES7 522-1BL01-0AB0
- CPU 313C-2DP
- 6ES7 323-1BH01-0AA0
- DO810
- VE4002S1T1B3
- 1746 OB 32
- VE4002S1T2B3
- CPU 314C-2PtP
- 6ES7 522-1BH00-0AB0
- 6ES7 422-1BL00-0AA0
- LY41PT1P
- CPU 313C
- 6ES7 522-1BH01-0AB0
- IC694MDL754
- 6ES7 322-1BL00-0AA0
- 1771 OBN
- 6ES7 422-7BL00-0AB0
- 1756-OB32
- TC-ODD 321
- DO840
- VE4002S1T2B6
- 6ES7 323-1BL00-0AA0
- 6ES7 322-1BH01-0AA0
- CPU 314C-2DP
- VE4002S1T2B3 Series 2
- QY81P
- 1756-OB16E
