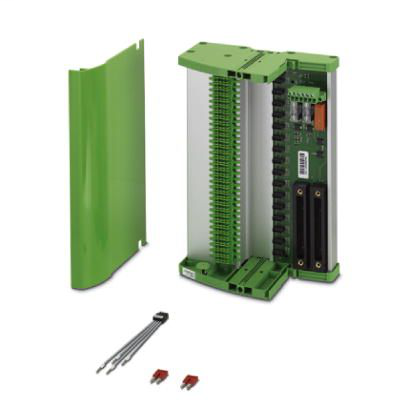

Phoenix Contact 2903571
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The TC-2KS50-DI32-M-MR-CS termination carrier is a compact solution which connects signal conditioners from the MINI Analog series to Yokogawa CS3000 digital input cards type ADV 151 and ADV 161.Module carrier 2903571
Phoenix Contact 2903571 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C (Please observe module specifications)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 2g, according to IEC 60068-2-6
Connection 1
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Power supply
- Number of connections
- 1
- Number of positions
- 6
- Stripping length
- 7 mm
Connection 2
- Connection method
- Yokogawa KS-compatible
- Connection name
- Controller level
- Number of connections
- 2
- Number of positions
- 50
Dimensions
- Depth
- 160 mm
- Height
- 170 mm
- Width
- 242 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Conformance
- CE-compliant
- Designation
- Air clearances and creepage distances
- Flammability rating according to UL 94
- V0
- Insulation
- Basic insulation
- Rated insulation voltage
- 50 V
- Rated surge voltage
- 0.5 kV
- Shock
- 15g, according to IEC 60068-2-27
- Standards/regulations
- DIN EN 50178
- Vibration (operation)
- 2g, according to IEC 60068-2-6
Supply
- Contact type
- 1 N/C contact (alarm = open)
- Designation
- Power module
- Fuse
- 1.25 A on PCB, slow-blow (replaceable)
- Input voltage
- 24 V DC
- Input voltage range
- 19.2 V DC - 30 V DC
- Maximum switching voltage
- 50 V DC (0.3 A)
- Note
- Supply via 2864134 MINI MCR-SL-PTB and 2811420 MINI MCR-SL-TB feed-through terminal block.
- Output name
- Switching output
- Polarization and surge protection
- Yes
- Redundant supply
- yes, decoupled from diodes
- Status display
- 1 x green LED (PWR)
- 2 x red LED (error)
