Phoenix Contact 2903476
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

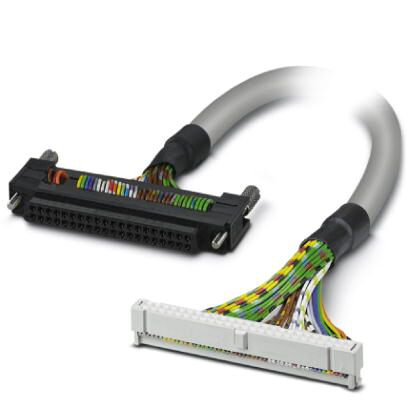

Round cable set; controller: Mitsubishi Electric MELSEC L, MELSEC Q, Honeywell MasterLogic ML200; connection 1: Fujitsu connector (1x 40-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 0.5 mCable - CABLE-FCN40/1X50/ 0,5M/IP/MEL - 2903476
Phoenix Contact 2903476 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 70 °C (flexible installation)
- -40 °C - 70 °C (fixed installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- ≥ IP54 (Installation location)
- IP00
- Maximum altitude
- ≤ 2000 m
Color code
- Connector 1 = connector 2 (optional) = wire color
- Fujitsu40 (A13) = IDC/FLK50 (34) = white-gray
- Fujitsu40 (B8) = IDC/FLK50 (19) = white
- Fujitsu40 (B9) = IDC/FLK50 (18) = white-brown
- Fujitsu40 (B10) = IDC/FLK50 (17) = white-orange
- Fujitsu40 (B19) = IDC/FLK50 (4) = green-orange
- Fujitsu40 (A15) = IDC/FLK50 (32) = brown-yellow
- Fujitsu40 (B1) = IDC/FLK50 (11) = black
- Fujitsu40 (B12) = IDC/FLK50 (15) = white-violet
- Fujitsu40 (A8) = IDC/FLK50 (43) = gray
- Fujitsu40 (B5) = IDC/FLK50 (22) = orange
- Fujitsu40 (B2) = IDC/FLK50 (48) = brown
- Fujitsu40 (A12) = IDC/FLK50 (39) = white-blue
- Fujitsu40 (B13) = IDC/FLK50 (10) = brown-black
- Fujitsu40 (A9) = IDC/FLK50 (42) = white-black
- Fujitsu40 (B18) = IDC/FLK50 (5) = green-brown
- Fujitsu40 (A14) = IDC/FLK50 (33) = brown-red
- Fujitsu40 (A5) = IDC/FLK50 (46) = red
- Fujitsu40 (B17) = IDC/FLK50 (6) = brown-white
- Fujitsu40 (A16) = IDC/FLK50 (31) = brown-blue
- Fujitsu40 (A18) = IDC/FLK50 (29) = green-black
- Fujitsu40 (B20) = IDC/FLK50 (3) = green-violet
- Fujitsu40 (B6) = IDC/FLK50 (21) = green
- Fujitsu40 (A6) = IDC/FLK50 (45) = yellow
- Fujitsu40 (A10) = IDC/FLK50 (41) = white-red
- Fujitsu40 (B14) = IDC/FLK50 (9) = brown-orange
- Fujitsu40 (A11) = IDC/FLK50 (40) = white-yellow
- Fujitsu40 (A7) = IDC/FLK50 (44) = blue
- Fujitsu40 (A19) = IDC/FLK50 (28) = green-red
- Fujitsu40 (B11) = IDC/FLK50 (16) = white-green
- Fujitsu40 (B15) = IDC/FLK50 (8) = brown-green
- Fujitsu40 (B7) = IDC/FLK50 (20) = violet
- Fujitsu40 (A20) = IDC/FLK50 (27) = green-blue
- Fujitsu40 (A17) = IDC/FLK50 (30) = brown-gray
- Fujitsu40 (B16) = IDC/FLK50 (7) = brown-violet
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 50
- Pitch
- 2.54 mm
Connection data 2
- Connection method
- Fujitsu connector
- Connection name
- Controller level
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 40
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Flame resistance
- IEC 60332-1-2
- IEC 60332-3-22
- CSA FT-1
- VDE 0842, Part 332-1-2
- UL VW-1
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- Honeywell MasterLogic 200
- MITSUBISHI MELSEC L
- MITSUBISHI MELSEC Q
- suitable I/O card
- QX82-S1
- QX71
- LX41C4
- 2MLI-D28B
- QX72
- 2MLF-SOEA
- 2MLI-D24A
- QX82
- LX42C4
