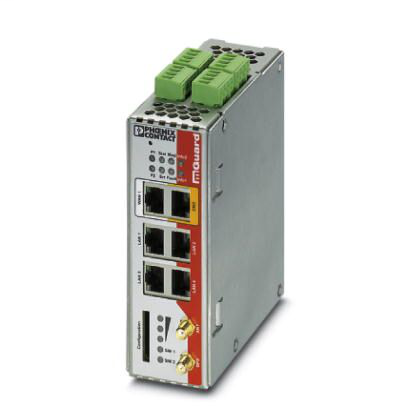

Phoenix Contact 2903440

Ambient conditions

• Altitude
  • ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation)
• Ambient temperature (operation)
  • -40 °C - 60 °C
• Ambient temperature (storage/transport)
  • -40 °C - 70 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)

Conformance/approvals

• Certificate
  • E357918
• Designation
  • UL, USA/Canada
  • UL, Canada
  • Corrosive gas test
  • UL, USA
  • CE
• Identification
  • CE-compliant
  • Class I, Zone 2, Ex nA IIC T4 Gc X
  • Class I, Zone 2, AEx nA IIC T4
  • ISA-S71.04-1985 G3 Harsh Group A
  • Class I, Div. 2, Groups A, B, C, D

Digital inputs

• Current input signal
  • 5 mA
• Description of the input
  • Digital input
• Number of inputs
  • 3
• Voltage input signal
  • 10 V DC - 30 V DC

Digital outputs

• Current output signal
  • ≤ 125 mA (Short-circuit-proof)
• Number of outputs
  • 3
• Output name
  • Digital output
• Voltage output signal
  • 10 V DC - 30 V DC (depending on the operating voltage)

Dimensions

• Depth
  • 114 mm
• Height
  • 130 mm
• Width
  • 45 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Function

• Management
  • Web-based management, SNMP
• Security functions
  • Supported Supported Supported DES, 3DES, AES-128, -192, -256 ESP tunnel / ESP transport Supported Supported X.509v3 certificates with RSA or PSK MD5, SHA-1 Quick mode, Main mode, PFS RFC 3706 MAC and IP addresses, ports, protocols IP spoofing, DoS and Syn Flood Protection Standard routing, NAT, 1:1-NAT, port forwarding
• Web-based management
  • yes

Interfaces

• Auxiliary protocols
  • ARP, DHCP, PING (ICMP), SNMP V1, SMTP
• Basic functions
  • Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card
• Connection method
  • RJ45
  • D-SUB 9 plug
• Data flow control/protocols
  • Software handshake, Xon/Xoff or hardware handshake RTS/CTS
• File format/coding
  • UART/NRZ: 8 Data, 1/2 Stop, None/Even/Odd Parity
• Interface
  • RS-232
  • Ethernet
• Interface 1
  • Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
• Interface 2
  • V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
• No. of ports
  • 6
• Protocols supported
  • TCP/IP, UDP/IP, FTP, HTTP
• Serial transmission speed
  • 9.6; 19.2; 38.4; 57.6; 115.2 kbps
• Transmission length
  • 15 m
  • 100 m (shielded twisted pair)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Power supply

• Conductor cross section solid max.
  • 2.50 mm²
• Conductor cross section solid min.
  • 0.20 mm²
• Max. AWG conductor cross section, flexible
  • 14
• Max. current consumption
  • < 1.8 A (at 11 V DC (incl. 3 x 125 mA for the outputs))
• Min. AWG conductor cross section, flexible
  • 24
• Supply voltage range
  • 11 V DC - 36 V DC (via pluggable COMBICON screw terminal block)
• Typical current consumption
  • < 320 mA (24 V DC)

Standards and Regulations

• Comments
  • Criterion B
• Contact discharge
  • ± 6 kV (Test Level 3)
• Electromagnetic compatibility
  • Conformance with EMC Directive 2014/30/EU
• Free from substances that could impair the application of coating
  • according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard
• Frequency range
  • 80 MHz - 3 GHz (Test Level 3)
  • 0.15 MHz - 80 MHz
• Signal
  • ± 1 kV (Data line, asymmetrical)
• Standards/regulations
  • EN 61000-4-3
  • EN 61000-6-4
  • EN 61000-4-4
  • EN 61000-4-6
  • EN 61000-4-5
  • EN 61000-4-2
• Test result
  • 1 m
  • Storage: 30g, 11 ms period, half-sine shock pulse
  • 5g, 10...150 Hz, 2.5 h, in XYZ direction
  • Operation: 15g, 11 ms period, half-sine shock pulse
• Type of test
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
  • Free fall in acc. with IEC 60068-2-32

Wireless interface

• Antenna
  • 50 Ω impedance SMA antenna socket
• Data rate
  • ≤ 3.1 Mbps (DL CDMA2000)
  • ≤ 14.4 Mbps (HSDPA)
  • ≤ 1.8 Mbps (UL CDMA2000)
  • ≤ 5.7 Mbps (HSUPA)
• EDGE
  • Multislot Class 12
• Frequency
  • 1900 MHz (CDMA2000 EV-DO)
  • 800 MHz (CDMA2000 EV-DO)
  • 1900 MHz (1 W (EGSM))
  • 850 MHz (UMTS/HSPA B5)
  • 900 MHz (2 W (EGSM))
  • 850 MHz (2 W (EGSM))
  • 2100 MHz (UMTS/HSPA B1)
  • 1900 MHz (UMTS/HSPA B2)
  • 1800 MHz (1 W (EGSM))
  • 900 MHz (UMTS/HSPA B8)
  • 800 MHz (UMTS/HSPA B6)
• GPRS
  • Class 12, Class B
  • CS1 - CS4
• Interface description
  • GSM / GPRS / EDGE / UMTS / CDMA2000
• Network check
  • LED bar graph to display receive quality
• Network function
  • 4 time slots for receiving data, 4 time slots for transmitting data. The PIN is saved in the modem. After a voltage interruption, there is automatic redialing into the network. Integrated TCP/IP stack, firewall and VPN support, independent connection establishment.
• Protocols supported
  • GPS (Global Positioning System), GLONASS
• SIM interface 1
  • 1.8 volt, 3 volt
• SIM interface 2
  • 1.8 volt, 3 volt
• UMTS
  • HSPA 3GPP R6
