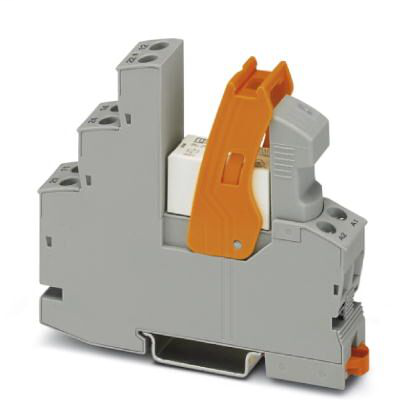

Phoenix Contact 2903351
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Pre-assembled relay module with screw connection, consisting of: relay base, multi-layer contact relay, plug-in display/interference suppression module, and retaining bracket. Contact type: 1 changeover contact. Input voltage: 230 V ACRelay Module - RIF-1-RSC-LV-230AC/1X21AU - 2903351
Phoenix Contact 2903351 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 50 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- RT II (Relay)
- IP20 (Relay base)
Coil side
- Coil voltage
- 230 V AC
- Input voltage range in reference to UN
- see diagram
- Mains frequency
- 50/60 Hz
- Nominal input voltage UN
- 230 V AC
- Operating voltage display
- Yellow LED
- Protective circuit
- Varistor
- Typical input current at UN
- 6 mA
- Typical release time range
- 3 ms - 20 ms
- Typical response time
- 3 ms - 12 ms
Connection data
- Conductor cross section AWG
- 20 - 12 (flexible)
- 20 - 10 (solid)
- Conductor cross section flexible
- 0.5 mm² - 4 mm² (Ferrule with plastic sleeve)
- 0.5 mm² - 4 mm²
- Conductor cross section flexible (2 conductors with same cross section)
- 0.5 mm² - 2.5 mm²
- 0.5 mm² - 1.5 mm² (TWIN ferrule with plastic sleeve)
- Conductor cross section solid
- 0.5 mm² - 4 mm²
- Conductor cross-section solid (2 conductors with same cross section)
- 0.5 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Coil side
- Stripping length
- 8 mm
- Torque
- 0.5 Nm - 0.6 Nm
Connection data 2
- Conductor cross section AWG
- 20 - 10 (solid)
- 20 - 12 (flexible)
- Conductor cross section flexible
- 0.5 mm² - 4 mm² (Ferrule with plastic sleeve)
- 0.5 mm² - 4 mm²
- Conductor cross section flexible (2 conductors with same cross section)
- 0.5 mm² - 2.5 mm²
- 0.5 mm² - 1.5 mm² (TWIN ferrule with plastic sleeve)
- Conductor cross section solid
- 0.5 mm² - 4 mm²
- Conductor cross-section solid (2 conductors with same cross section)
- 0.5 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Contact side
- Stripping length
- 8 mm
- Torque
- 0.5 Nm - 0.6 Nm
Contact side
- Contact material
- AgNi, hard gold-plated
- Contact type
- 1 PDT
- Interrupting rating (ohmic load) max.
- 1.2 W (at 24 V DC)
- Limiting continuous current
- 50 mA
- Maximum inrush current
- 50 mA
- Maximum switching voltage
- 36 V DC
- 30 V AC
- Minimum switching voltage
- 100 mV (at 10 mA)
- Min. switching current
- 1 mA (at 24 V)
- Switching capacity
- 2 A (at 24 V, AC15)
- Type of switch contact
- Single contact
Contact side (with destroyed gold layer)
- Contact material
- AgNi
- Interrupting rating (ohmic load) max.
- 2500 VA (for 250 V AC)
- 50 W (at 110 V DC)
- 80 W (at 220 V DC)
- 240 W (at 24 V DC)
- 58 W (at 48 V DC)
- 48 W (at 60 V DC)
- Limiting continuous current
- 25 A (20 ms, N/O contacts)
- Maximum switching voltage
- 250 V AC/DC
- Minimum switching voltage
- 12 V (at 10 mA)
- Min. switching current
- 10 mA (at 12 V)
- Note
- the following values are applicable if a gold layer is destroyed
- Switching capacity
- 2 A (at 24 V, AC15)
- 0.2 A (at 110 V, DC13)
- 0.2 A (at 250 V, DC13)
- 2 A (at 24 V, DC13)
- 2 A (at 250 V, AC15)
- 2 A (at 120 V, AC15)
Dimensions
- Depth
- 75 mm
- Height
- 89 mm
- Width
- 16 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Note
- Note
- FBS 2-6... plug-in bridge for the input side (A2) and FBS-2-8... plug-in bridge for the output side (11/21)
- Type of note
- Notes on operation
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Insulation
- safe isolation
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 250 V AC
- Rated surge voltage
- 6 kV
- Standards/regulations
- DIN EN 50178
