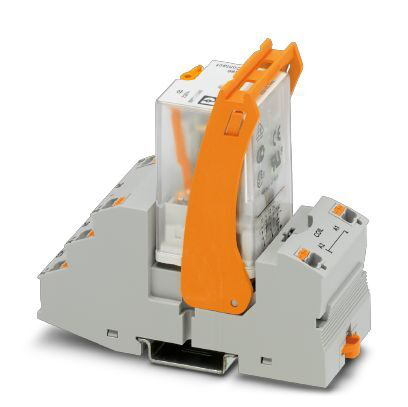

Phoenix Contact 2903295

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 50 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • RT I (Relay)
  • IP20 (Relay base)

Coil side

• Coil voltage
  • 230 V AC
• Input voltage range in reference to UN
  • see diagram
• Mains frequency
  • 50/60 Hz
• Nominal input voltage UN
  • 230 V AC
• Operating voltage display
  • Yellow LED
• Power dissipation for nominal condition
  • 2.99 W
• Protective circuit
  • Varistor
• Typical input current at UN
  • 13 mA
• Typical release time range
  • 5 ms - 20 ms
• Typical response time
  • 5 ms - 15 ms

Connection data

• Conductor cross section AWG
  • 26 - 16 (solid)
  • 26 - 16 (flexible)
• Conductor cross section flexible
  • 0.14 mm² - 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
  • 0.14 mm² - 1.5 mm² (Ferrule with plastic sleeve)
  • 0.14 mm² - 1.5 mm²
• Conductor cross section solid
  • 0.14 mm² - 1.5 mm²
• Connection method
  • Push-in connection
• Connection name
  • Coil side
• Stripping length
  • 8 mm

Connection data 2

• Conductor cross section AWG
  • 26 - 16 (solid)
  • 26 - 16 (flexible)
• Conductor cross section flexible
  • 0.14 mm² - 1.5 mm²
  • 0.14 mm² - 1.5 mm² (Ferrule with plastic sleeve)
  • 0.14 mm² - 1 mm² (Ferrule with plastic sleeve, two conductors on double terminal block)
• Conductor cross section solid
  • 0.14 mm² - 1.5 mm²
• Connection method
  • Push-in connection
• Connection name
  • Contact side
• Stripping length
  • 8 mm

Contact side

• Contact material
  • AgNi
• Contact type
  • 2 PDT
• Interrupting rating (ohmic load) max.
  • 108 W (at 60 V DC)
  • 168 W (at 24 V DC)
  • 124 W (at 48 V DC)
  • 1750 VA (for 250 V AC)
  • 52 W (at 110 V DC)
  • 48 W (at 220 V DC)
• Limiting continuous current
  • 7 A (see diagram)
• Maximum inrush current
  • 30 A (20 ms, N/O contacts)
• Maximum switching voltage
  • 250 V AC/DC
• Minimum switching voltage
  • 10 V (At 24 mA)
• Min. switching current
  • 10 mA (at 24 V)
• Switching capacity
  • 0.11 A (at 250 V, DC13)
  • 3 A (at 24 V, AC15)
  • 0.22 A (at 120 V, DC13)
  • 3 A (at 120 V, AC15)
  • 2 A (at 24 V, DC13)
  • 1.5 A (at 240 V, AC15)
• Type of switch contact
  • Single contact

Dimensions

• Depth
  • 90 mm
• Height
  • 103 mm
• Width
  • 40 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Connection in acc. with standard
  • CSA
• Insulation
  • Basic insulation
• Overvoltage category
  • III
• Pollution degree
  • 2
• Rated insulation voltage
  • 250 V AC
• Rated surge voltage
  • 4 kV
• Standards/regulations
  • DIN EN 50178
