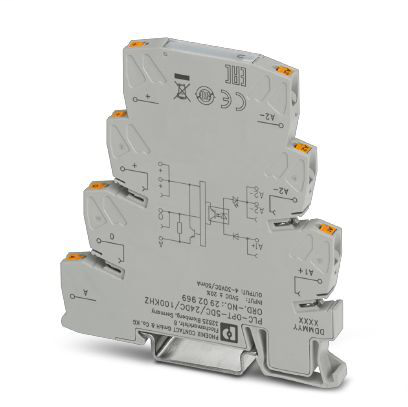

Phoenix Contact 2902969
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Input solid-state relay, transmission frequency: 100 kHz, with LED and protective circuit in input and output circuits, input: 5 V DC, output: 4 - 30 V DC/50 mASolid-state relay module - PLC-OPT- 5DC/ 24DC/100KHZ - 2902969
Phoenix Contact 2902969 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -25 °C - 75 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Input side
- Stripping length
- 8 mm
Connection data 2
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Output side
- Stripping length
- 8 mm
Dimensions
- Depth
- 86 mm
- Height
- 80 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Input data
- Input voltage range
- 4 V DC - 6 V DC
- Input voltage range in reference to UN
- 0.8 - 1.2
- Nominal input voltage UN
- 5 V DC
- Operating voltage display
- Yellow LED
- Power dissipation for nominal condition
- 0.04 W
- Surge voltage protection
- > 14 V
- Switching threshold "0" signal in reference to UN
- < 0.4
- Switching threshold "1" signal in reference to UN
- > 0.8
- Transmission frequency
- 100 kHz
- Type of protection
- Surge protection
- Reverse polarity protection
- Typical input current at UN
- 7 mA
- Typical response time
- 1.5 µs
- Typical turn-off time
- 2 µs
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Designation
- Output data
- Limiting continuous current
- 50 mA
- Output circuit
- 3-conductor, ground-referenced
- Output voltage range
- 4 V DC - 30 V DC
- Quiescent current
- 4.3 mA
- Surge voltage protection
- > 35 V
- Type of protection
- Surge protection
- Reverse polarity protection
- Voltage drop at max. limiting continuous current
- < 0.5 V
Standards and Regulations
- Designation
- Air clearances and creepage distances between the power circuits
- Insulation
- Basic insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 50 V DC
- Rated surge voltage
- 0.5 kV
- Standards/regulations
- DIN EN 50178
