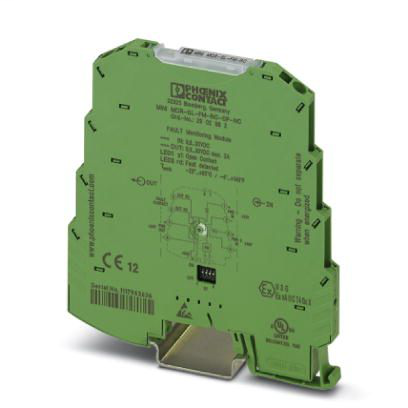

Phoenix Contact 2902962
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The fault monitoring module is used to evaluate and report group errors from the fault monitoring system and to monitor the supply voltages. The error is reported via an N/O contact. Spring-cage connection, standard configuration.Monitoring module 2902962
Phoenix Contact 2902962 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 65 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Connection data
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Spring-cage connection
- Stripping length
- 8 mm
Dimensions
- Depth
- 102.5 mm
- Height
- 93.1 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Input data
- Description of the input
- Voltage input for redundancy monitoring
- Voltage input signal
- 9.6 V DC - 30 V DC
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Max. output current
- 2 A
- Voltage output signal
- 8.8 V DC - 29.2 V DC
Power supply
- Max. current consumption
- < 5 mA (at 24 V DC)
- Power consumption
- < 120 mW (at 24 V DC)
- Supply voltage range
- 9.6 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
Standards and Regulations
- ATEX
- II 3 G Ex nA nC IIC T4 Gc X
- Comments
- Criterion B
- Conformance
- CE-compliant
- Designation
- Conducted interferences
- Electromagnetic RF field
- Electrical isolation
- Basic insulation according to EN 61010
- Electromagnetic compatibility
- Conformance with EMC directive
- Fire protection for rail vehicles (DIN EN 45545-2) R22
- HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R23
- HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R24
- HL 1 - HL 2
- Noise emission
- EN 61000-6-4
- Standards/regulations
- EN 61000-4-6
- EN 61000-4-5
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-4
- UL, USA/Canada
- Class I, Div. 2, Groups A, B, C, D T5 applied for
- Class I, Zone 2, Group IIC
- UL 508 Listed
Switching output
- Maximum switching voltage
- 30 V AC/DC
- Max. switching current
- 50 mA
- Output name
- Switching output
