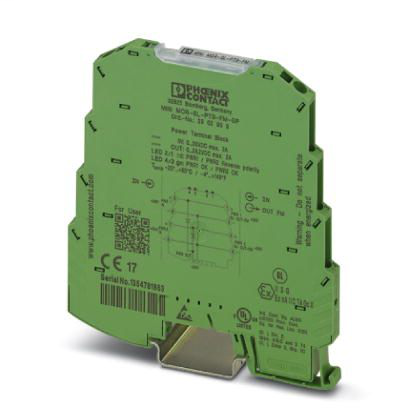

Phoenix Contact 2902959

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 65 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C

Connection data, input

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Spring-cage connection
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 102.5 mm
• Height
  • 93.1 mm
• Width
  • 6.2 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Output voltage range
  • Input voltage - 0.8 V

Standards and Regulations

• ATEX
  •  II 3 G Ex nA IIC T4 Gc X
• Conformance
  • CE-compliant
• Designation
  • Conducted interferences
  • Electromagnetic RF field
• Electromagnetic compatibility
  • Conformance with EMC directive
• Evaluation criterion
  • A
  • A
• Fire protection for rail vehicles (DIN EN 45545-2) R22
  • HL 1 - HL 2
• Fire protection for rail vehicles (DIN EN 45545-2) R23
  • HL 1 - HL 2
• Fire protection for rail vehicles (DIN EN 45545-2) R24
  • HL 1 - HL 2
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-2
  • EN 61000-4-3
  • EN 61000-4-6
  • EN 61000-4-5
  • EN 61000-4-4
• UL, USA/Canada
  • Class I, Zone 2, Group IIC
  • Class I, Div. 2, Groups A, B, C, D T4
  • UL 508 Listed
