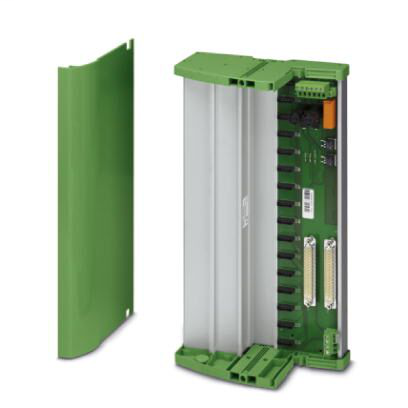

Phoenix Contact 2902914
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Universal Termination Carrier for redundantly connecting 16 PSR-ETP modules to digital output cards, via two D-SUB connectors, 37-pos. (1:1 connection). Solution for Fire & Gas (F&G) applicationsModule carrier - TC-2D37SUB-DO16-F&G-AR-UNI - 2902914
Phoenix Contact 2902914 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- IP00
- Maximum altitude
- ≤ 2000 m
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
- Shock
- 15g, according to IEC 60068-2-27
- Vibration (operation)
- 2g, according to IEC 60068-2-6
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Screw connection
- Connection name
- Power supply
- Number of connections
- 1
- Number of positions
- 6
- Stripping length
- 7 mm
Connection data 2
- Connection method
- D-SUB pin strip
- Connection name
- Controller level
- Number of connections
- 2
- Number of positions
- 37
Dimensions
- Depth
- 160 mm
- Height
- 170 mm
- Width
- 304 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Insulation
- Basic insulation
- Rated insulation voltage
- 50 V
- Rated surge voltage
- 0.5 kV
- Shock
- 15g, according to IEC 60068-2-27
- Standards/regulations
- DIN EN 50178
- UL, USA/Canada
- Class I, Zone 2, Group IIC
- UL 61010 Listed
- Class I, Div. 2, Groups A, B, C, D T4
- Vibration (operation)
- 2g, according to IEC 60068-2-6
Supply
- Contact type
- 1 N/C contact (alarm = open)
- Designation
- Device supply
- Fuse
- 2.5 A on PCB, slow-blow (replaceable)
- Input current
- ≤ 2 A
- Input voltage range
- 21.1 V DC - 26.4 V DC
- Output name
- Switching output
- Polarization and surge protection
- Yes
- Redundant supply
- yes, decoupled from diodes
- Status display
- 2 x red LED (error)
- 2x green LEDs (PWR1 and PWR2)
