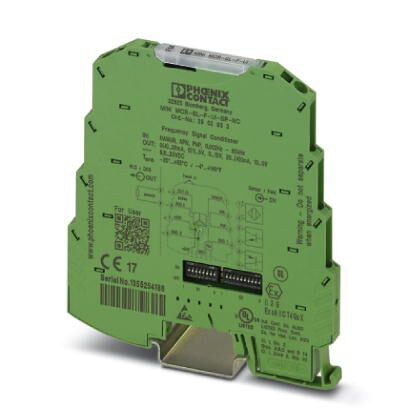

Phoenix Contact 2902833

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 65 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Noise immunity
  • EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 2.5 mm²
• Connection method
  • Spring-cage connection
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 102.5 mm
• Height
  • 93.1 mm
• Width
  • 6.2 mm

EMC data

• Designation
  • Electromagnetic RF field
  • Fast transients (burst)
  • Conducted interferences
• Standards/regulations
  • EN 61000-4-4
  • EN 61000-4-3
  • EN 61000-4-6
• Typical deviation from the measuring range final value
  • 0.1 %
  • 0.3 %
  • 2 %

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• Available input sources
  • Floating relay contact (dry contact)
  • NPN/PNP transistor outputs
  • NAMUR initiators
• Configurable/programmable
  • Yes
• Frequency input
  • Frequency input
• Frequency measuring range
  • 0.002 Hz - 20 kHz (DIP switch)
• Max. input amplitude
  • 30 V (incl. DC voltage)

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Configurable/programmable
  • Yes
• Current output signal
  • 0 mA - 20 mA
  • 20 mA - 0 mA
  • 4 mA - 20 mA
  • 20 mA - 4 mA
• Load/output load current output
  • 500 Ω (at 20 mA)
• Load/output load voltage output
  • ≥ 10 kΩ
• Max. output current
  • 24.6 mA
• Max. output voltage
  • approx. 12.3 V
• Number of outputs
  • 1
• Output name
  • Voltage output
• Ripple
  • < 20 mVPP
  • < 20 mVPP (at 500 Ω)
• Step response (0–99%)
  • < 35 ms (At f > 500 Hz)
• Voltage output signal
  • 1 V - 5 V
  • 10 V - 0 V
  • 0 V - 10 V
  • 0 V - 5 V

Power supply

• Power consumption
  • < 800 mW (at IOUT = 20 mA, 9.6 V DC, load 500 Ω)
• Supply voltage range
  • 9.6 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
• Typical current consumption
  • < 28 mA (at IOUT = 20 mA, 24 V DC, load 500 Ω)

Standards and Regulations

• ATEX
  • II 3 G Ex nA IIC T4 Gc X
• Conformance
  • CE-compliant
• Designation
  • Electromagnetic RF field
  • Conducted interferences
• Electrical isolation
  • Basic insulation according to EN 61010
• Electromagnetic compatibility
  • Conformance with EMC directive
• Noise emission
  • EN 61000-6-4
• Standards/regulations
  • EN 61000-4-6
  • EN 61000-4-4
  • EN 61000-4-3
  • EN 61000-4-5
  • EN 61000-4-2
• UL, USA/Canada
  • Class I, Zone 2, Group IIC
  • UL 508 Listed
  • Class I, Div. 2, Groups A, B, C, D T4
