Phoenix Contact 2902800
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

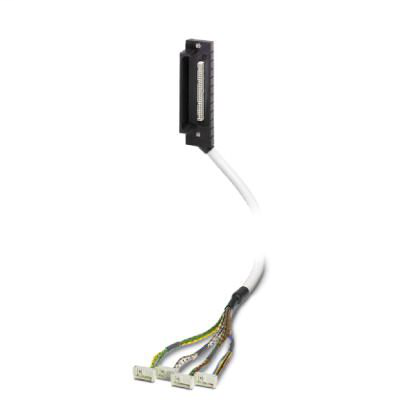

Cast Yokogawa front adapter with attached round cable and an injection-molded 50-pos. socket strip for the connection of 4 x 8 channels on the field side. Cable length: 22.0 mFront adapters - CABLE-50/4FLK14/22,0M/YUC - 2902800
Phoenix Contact 2902800 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 50 °C
- Ambient temperature (storage/transport)
- -20 °C - 70 °C
Cable
- Cable capacity
- approx. 130 pF/m
- Cable impedance
- approx. 120 Ω
- Cable insulation resistance
- approx. 153 MΩ/km
- Cable resistance
- approx. 155 Ω/km
- Conductor construction: Number of litz wires:
- 7
- External diameter
- 11 mm
- External sheath, color
- gray RAL 7035
- Halogen-free cable
- No
- Insulation
- Semi-rigid PVC
- Length of cable
- 22 m
- Max. conductor resistance
- 0.16 Ω/m
- Outer sheath, material
- PVC
- Shielding
- yes
- Single wire, cross section
- 0.14 mm²
- Structural data
- in acc. to UL style 2464/1061
Connection data
- Connection method
- Yokogawa, I/O cards compatible
- Connection name
- Control side
- Number of connections
- 1
- Number of positions
- 50
- Torque
- 0.5 Nm (Screw connection)
Connection data 2
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Number of connections
- 4
- Number of positions
- 14
- Pitch
- 2.54 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Flame resistance
- IEC 60332-3-22
- Gasoline resistance
- against occasional splashes
- Resistance to oil
- DIN VDE 0472 Part 803, test type B
Supported controller
- Controller
- YOKOGAWA CS3000 CentumVP
- YOKOGAWA STARDOM
- suitable I/O card
- NFDV151
- ADV551
- NFDV551
- ADV151
