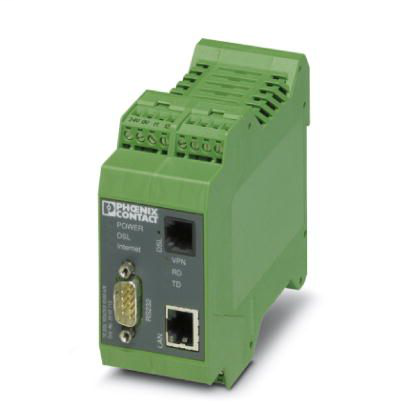

Phoenix Contact 2902710
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Industrial ADSL broadband router/modem with RS-232, integrated firewall, NAT and VPN support (IPsec, OpenVPN). The device supports the standards Annex A, B, and J (ALL-IP connections of Deutsche Telekom). Annex J as of firmware v1.05.4Router 2902710
Phoenix Contact 2902710 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- 5000 m (For restrictions see manufacturer's declaration)
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 75 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 30 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 30 % - 95 % (non-condensing)
Digital inputs
- Current input signal
- 5 mA
- Description of the input
- Digital input
- Number of inputs
- 6
- Voltage input signal
- 10 V DC - 30 V DC
Digital outputs
- Current output signal
- ≤ 50 mA (Short-circuit-proof)
- Number of outputs
- 4
- Output name
- Digital output
- Voltage output signal
- 10 V DC - 30 V DC (depending on the operating voltage)
Dimensions
- Depth
- 112 mm
- Height
- 99 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
- REACh SVHC
- Lead 7439-92-1
Function
- Management
- Web-based management
- Web-based management
- yes
Note
- Utilization restriction
- 1
Power supply
- Max. current consumption
- < 300 mA (10 V DC)
- Supply voltage range
- 10 V DC - 30 V DC (via pluggable COMBICON screw terminal block)
- Typical current consumption
- < 135 mA (stand by)
- < 150 mA (24 V DC)
Serial interface
- Auxiliary protocols
- ARP, DHCP, PING (ICMP), SNMP V1, SMTP
- Connection method
- 6P2C RJ11 socket, shielded
- D-SUB 9 plug
- COMBICON plug-in screw terminal block
- 8P8C RJ45 socket, shielded
- Data flow control/protocols
- Software handshake, Xon/Xoff or hardware handshake RTS/CTS
- Data rate
- ≤ 2.4 Mbps (Annex J, upstream to Internet)
- ≤ 1 Mbps (Annex A/B, upstream to Internet)
- ≤ 25 Mbps (Annex A/B, downstream from Internet)
- ≤ 25 Mbps (Annex J, downstream from Internet)
- File format/coding
- UART/NRZ: 7/8 Bit Data, 1/2 Bit Stopp, None/Even/Odd Parity
- Interface 1
- ADSL interface, according to ITU-T G.992.1, G.992.3, G.992.5/Annex A, Annex B, Annex J
- Interface 2
- Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u
- Interface 3
- V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1
- No. of ports
- 1
- Pin assignment
- DTE/DCE switchover via web-based management
- Protocols supported
- TCP/IP, UDP/IP, FTP, HTTP
- Ringer Equivalence Number
- 0.3 (B)
- Serial transmission speed
- 0.3; 1.2; 2.4; 4.8; 9.6; 19.2; 38.4; 57.6; 115.2 kbps
- 10/100 Mbps, auto negotiation
- Transmission length
- ≤ 100 m (shielded twisted pair)
- ≤ 5 km
- 15 m
Standards and Regulations
- Conformance
- CE-compliant
- Electromagnetic compatibility
- Conformance with EMC Directive 2014/30/EU
- Noxious gas test
- ISA-S71.04-1985 G3 Harsh Group A
