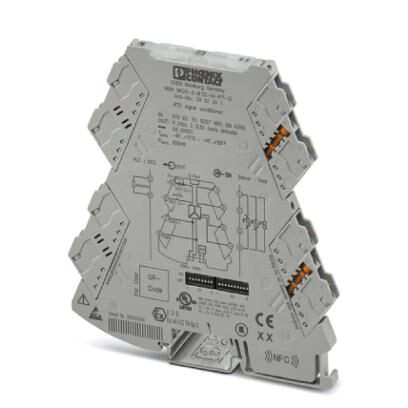

Phoenix Contact 2902051
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Configurable temperature transducer with plug-in connection technology for connecting 2, 3, and 4-conductor resistance thermometers and resistance-type sensors. Configurable via DIP switch or software. push-in connection technology, order configurationResistance thermometer measuring transducer - MINI MCR-2-RTD-UI-PT-C - 2902051
Phoenix Contact 2902051 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20 (not assessed by UL)
- Noise immunity
- EN 61000-6-2 When being exposed to interference, there may be minimal deviations.
- Permissible humidity (operation)
- 5 % - 95 % (non-condensing)
Connection data
- Conductor cross section AWG
- 24 - 12 (flexible)
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2.5 mm² (with ferrule)
- 0.14 mm² - 2.5 mm² (without ferrule)
- Connection method
- Push-in connection
- Stripping length
- 10 mm
Dimensions
- Depth
- 119.2 mm
- Height
- 109.81 mm
- Width
- 6.2 mm
EMC data
- Designation
- Fast transients (burst)
- Electromagnetic RF field
- Conducted interferences
- Standards/regulations
- EN 61000-4-4
- EN 61000-4-6
- EN 61000-4-3
- Typical deviation from the measuring range final value
- 0.07 %
- 0.1 %
- 0.06 %
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Input data
- Configurable/programmable
- Yes
- Connection technology
- 2, 3, 4-wire
- Linear resistance measuring range
- 0 Ω - 4000 Ω (Minimum measuring span: 10% of the selected measuring range)
- Sensor input current
- approx. 200 µA
- Sensor types (RTD) that can be used
- Pt, Ni, Cu sensors
- Temperature measuring range
- -200 °C - 850 °C (Range depends on sensor type, range can be set freely via software or in increments from -150°C to 850°C via DIP switches)
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Configurable/programmable
- Yes
- Current output signal
- 20 mA - 4 mA (via DIP switch)
- 20 mA - 0 mA (via DIP switch)
- 4 mA - 20 mA (via DIP switch)
- 0 mA - 20 mA (via DIP switch)
- 0 mA - 21 mA (can be set via software)
- Load/output load current output
- ≤ 600 Ω (at 20 mA)
- Load/output load voltage output
- ≥ 10 kΩ
- Max. output current
- 24.6 mA
- Max. output voltage
- approx. 12.3 V
- Number of outputs
- 1
- Ripple
- < 10 mVrms
- < 10 mVrms (at 600 Ω)
- Short-circuit current
- < 31.5 mA
- Voltage output signal
- 0 V - 10.5 V (can be set via software)
- 0 V - 5 V (via DIP switch)
- 0 V - 10 V (via DIP switch)
- 1 V - 5 V (via DIP switch)
- 10 V - 0 V (via DIP switch)
Power supply
- Power consumption
- ≤ 850 mW (at IOUT = 20 mA, 9.6 V DC, 600 Ω load)
- Supply voltage range
- 9.6 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
- Typical current consumption
- 32 mA (24 V DC)
- 63 mA (12 V DC)
Standards and Regulations
- ATEX
- II 3 G Ex nA IIC T4 Gc X
- Conformance
- CE-compliant
- Designation
- Electromagnetic RF field
- Conducted interferences
- Electrical isolation
- Reinforced insulation in accordance with IEC 61010-1
- Electromagnetic compatibility
- Conformance with EMC directive
- Noise emission
- EN 61000-6-4
- Standards/regulations
- EN 61000-4-4
- EN 61000-4-6
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-5
- UL, USA/Canada
- UL 508 Listed
- Class I, Div. 2, Groups A, B, C, D T6
- Class I, Zone 2, Group IIC T6
