Description

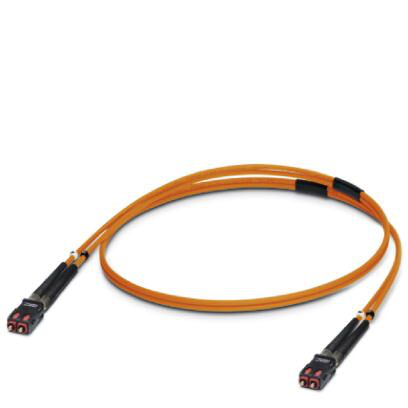

Assembled FO cable, break out cable, multimode fiberglass 50/125 µm (OM2), connector: SC-RJ/SC-RJ, degree of protection: IP20, for installation in cable ducts or control cabinets, length: 1 mFO patch cable - FL MM PATCH 1,0 SCRJ-SCRJ - 2901823
Phoenix Contact 2901823 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (installation)
- -5 °C - 50 °C
- Ambient temperature (operation)
- -5 °C - 70 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Resistance to oil
- Not resistant to oil, gasoline, acids, and lyes
Attenuation
- 1300 nm
- 0.7 dB/km
- 850 nm
- 2.5 dB/km
Behavior in fire
- Behavior in fire
- No corrosive or toxic fumes
- 0.36 MJ/m
- Concentration of fumes
- in accordance with IEC 61034
- Flame resistance
- IEC 60332-3-22 (Cat. A)
- according to DIN 60332-1-2
- Halogen-free
- According to IEC 60754-2
Cable type
- Cable abbreviation
- I-V(ZN)H
- Cable type
- Multimode fiberglass
- Cable weight
- 15.80 kg/km
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
External sheath
- External diameter max.
- 5.7 mm
- External diameter min.
- 2.8 mm
- External sheath, color
- orange
- External sheath, strain relief elements
- Non-metallic, aramide fiber
- Outer sheath, material
- FRNC
Mechanical properties
- Bending radius, long-term
- 60 mm
- Bending radius short term/long term
- 30 mm
- Cable, attenuation
- 2.5 dB/km
- 0.7 dB/km
- Lateral pressure, long-term
- 60.00 N/cm
- Numerical aperture
- 0.2
- Tensile strength short-term/long-term
- 600 N
Single wire
- Individual wire, diameter
- 900 µm
- Single wires, quantity
- 2
- Single wire, strain relief elements
- Non-metallic, aramide fibers
Standards and Regulations
- Behavior in fire
- No corrosive or toxic fumes
- 0.36 MJ/m
- Concentration of fumes
- in accordance with IEC 61034
- Flame resistance
- IEC 60332-3-22 (Cat. A)
- according to DIN 60332-1-2
- Halogen-free
- According to IEC 60754-2
- Resistance to oil
- Not resistant to oil, gasoline, acids, and lyes
