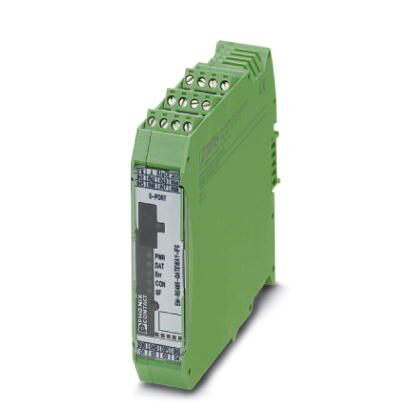

Phoenix Contact 2901527
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via Modbus/RS-485. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.Data interface - EM-RS485-GATEWAY-IFS - 2901527
Phoenix Contact 2901527 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 50 °C
- Ambient temperature (storage/transport)
- -35 °C - 80 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG
- 24 - 12
- Conductor cross section flexible
- 0.2 mm² - 2.5 mm²
- Conductor cross section solid
- 0.2 mm² - 2 mm²
- Connection method
- Screw connection
- Connection name
- Supply
- Screw thread
- M3
- Stripping length
- 8 mm
Connection data 2
- Connection method
- S-PORT (socket)
- Connection name
- Programming connection
- Number of connections
- 1
- Number of positions
- 12
Connection data 3
- Connection method
- DIN rail bus connectors
- Connection name
- INTERFACE system
- Number of connections
- 1
- Number of positions
- 5
Connection data 4
- Connection method
- Screw connection
- Connection name
- RS-485
- Number of connections
- 1
- Number of positions
- 5
Device supply
- Protective circuit
- Surge protection
- Reverse polarity protection
- Rated control circuit supply voltage US
- 24 V DC -20 % - +25 %
- Rated control supply current IS
- 85 mA (plus load current of the outputs)
Digital inputs
- Number
- 8
- Protective circuit
- Reverse polarity protection
- Rated actuating current IC
- 3 mA
- Rated actuating voltage UC
- 24 V DC ±20 %
Digital outputs
- Designation
- Switching outputs
- Maximum switching voltage
- 23 V DC (UB - Uresid. of the output)
- Max. switching current
- 500 mA
- Number
- 4
- Protective circuit
- Parallel protection against polarity reversal, pay attention to the fuse Fusing with max. 8 A F-fuse
- Residual voltage
- 1 V
Dimensions
- Depth
- 114.5 mm
- Height
- 99 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Serial interface
- Connection method
- DIN rail bus connectors
- MSTB plug entry
- Interface 1
- Interface-System
- Interface 2
- RS-485
- Serial transmission speed
- 76.8 kbps
- 9.6 k - 115 kbaud
Standards and Regulations
- Overvoltage category
- III
- Pollution degree
- 2
- Standards/regulations
- EN 50178
