Description

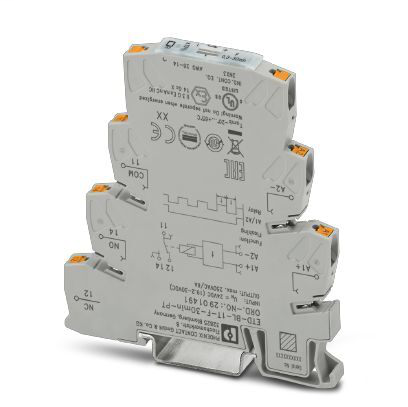

Timer relay with flasher function (beginning with pulse) and an adjustable time range (0.3 min - 30 min), with push-in connectionTimer relay - ETD-BL-1T-F- 30MIN-PT - 2901491
Phoenix Contact 2901491 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 65 °C
- Ambient temperature (storage/transport)
- -25 °C - 80 °C
- Degree of protection
- IP20
- Noise immunity
- EN 61000-6-2
- Permissible humidity (operation)
- 15 % - 85 %
Coil side
- Function
- F: Flashing beginning with pulse
- Input voltage range
- 24 V DC (19.2 V DC ...30 V DC)
- Setting range time
- 0.3 min. - 30 min.
Connection data
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Stripping length
- 8 mm
Contact side
- Contact type
- 1 floating PDT
- Interrupting rating (ohmic load) max.
- 1125 VA (4.5 A/250 V AC, module mounted in rows, spacing ≤ 5 mm)
- Output fuse
- 6.3 A (fast-blow)
Control contact
- Control pulse length
- min. 50 ms
Dimensions
- Depth
- 86 mm
- Height
- 80 mm
- Width
- 6.2 mm
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- Environmentally Friendly Use Period = 50 years
- REACh SVHC
- Lead 7439-92-1
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2004/108/EC
- Insulation
- Safe isolation
- Low Voltage Directive
- Conformance with LV directive 2006/95/EC
- Noise emission
- EN 61000-6-4
- Noise immunity
- EN 61000-6-2
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 300 V AC
- Rated surge voltage
- 6 kV
- Standards/regulations
- EN 50178
