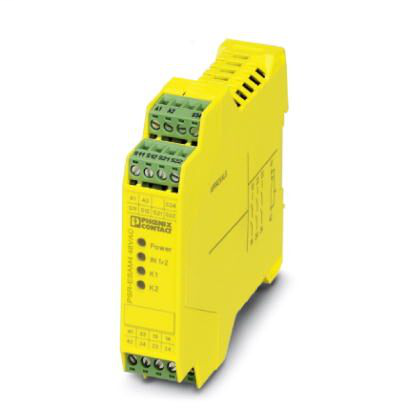

Phoenix Contact 2901425

Ambient conditions

• Ambient temperature (operation)
  • -25 °C - 55 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Maximum altitude
  • ≤ 2000 m (Above sea level)
• Max. permissible humidity (storage/transport)
  • 75 % (on average, 85% infrequently, non-condensing)
• Max. permissible relative humidity (operation)
  • 75 % (on average, 85% infrequently, non-condensing)

Connection data

• Conductor cross section AWG max.
  • 16
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 1.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 1.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Push-in connection
• pluggable
  • Yes
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 114.5 mm
• Height
  • 112 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Input data

• Concurrence input 1/2
  • ∞
• Input voltage range
  • 110 V AC/DC - 120 V AC/DC
• Input voltage range in reference to UN
  • 0.85 - 1.1
• Maximum switching frequency
  • 0.5 Hz
• Max. permissible overall conductor resistance
  • 50 Ω
• Operating voltage display
  • Green LED
• Protective circuit
  • Surge protection Varistor 275 VRMS (A1-A2)
  • Surge protection Varistor
• Recovery time
  • 1 s
• Status display
  • Green LED
• Typical input current at UN
  • 38 mA
• Typical release time
  • 20 ms (when controlled via S11/S12 and S21/S22)
  • 60 ms (when controlled via A1)
• Typical response time
  • 40 ms (man. start)
• Typ. starting time with Us
  • 330 ms (when controlled via A1)
• Voltage at input/start and feedback circuit
  • ~ 24 V DC

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Contact material
  • AgSnO₂, + 0.2 µm Au
• Contact type
  • 3 enabling current paths
  • 1 signaling current path
• Inrush current, minimum
  • 10 mA
• Interrupting rating (ohmic load) max.
  • 68 W (110 V DC, τ = 0 ms)
  • 2000 VA (250 V AC, τ = 0 ms)
  • 230 W (48 V DC, τ = 0 ms)
  • 144 W (24 V DC, τ = 0 ms)
  • 88 W (220 V DC, τ = 0 ms)
• Limiting continuous current
  • 5 A (N/C contact)
  • 6 A (N/O contact)
• Maximum inrush current
  • 6 A
• Maximum interrupting rating (inductive load)
  • 35 W (110 V DC, τ = 40 ms)
  • 40 W (48 V DC, τ = 40 ms)
  • 33 W (220 V DC, τ = 40 ms)
  • 48 W (24 V DC, τ = 40 ms)
• Maximum switching voltage
  • 250 V AC/DC
• Mechanical service life
  • approx. 10⁷ cycles
• Minimum switching voltage
  • 10 V AC/DC
• Output fuse
  • 6 A gL/gG NEOZED (N/C contact)
  • 10 A gL/gG NEOZED (N/O contact)
• Sq. Total current
  • 72 A²
• Switching capacity (360/h cycles)
  • 5 A (230 V AC)
  • 6 A (24 V DC)
• Switching capacity min.
  • 100 mW

Safety-related characteristic data

• Category
  • 4
• Designation
  • IEC 61508 - High demand
  • EN 50156
  • EN ISO 13849
  • IEC 61508 - Low demand
  • EN 62061
• Performance level (PL)
  • e
• Safety Integrity Level Claim Limit (SIL CL)
  • 3
• Safety Integrity Level (SIL)
  • 3
• Stop category
  • 0

Standards and Regulations

• Degree of pollution
  • 2
• Designation
  • Air clearances and creepage distances between the power circuits
• Overvoltage category
  • III
• Rated insulation voltage
  • 250 V AC
• Rated surge voltage/insulation
  • 4 kV / basic insulation (safe isolation, reinforced insulation, and 6 kV between A1-A2/logic/enabling and signaling current paths)
• Shock
  • 15g
• Standards/regulations
  • DIN EN 50178/VDE 0160
• Vibration (operation)
  • 10 Hz - 150 Hz, 2g
