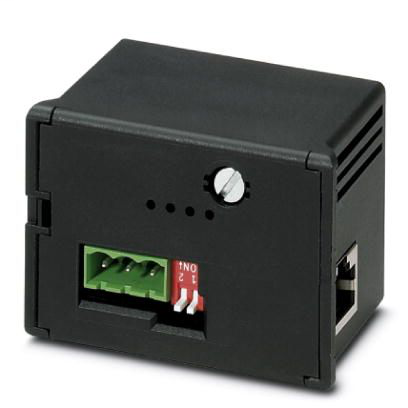

Phoenix Contact 2901374
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Gateway RS-485/Ethernet communication module for the EEM-MA600 with integrated web serverCommunication module 2901374
Phoenix Contact 2901374 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 55 °C (14 °F to 131 °F)
- Ambient temperature (storage/transport)
- -20 °C - 85 °C (-4 °F - 185 °F)
- Max. permissible relative humidity (operation)
- ≤ 95 %
- Max. salt spray content
- ≤ 2.5 %
Connection data
- Conductor cross section AWG max.
- 14
- Conductor cross section AWG min.
- 20
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.5 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.5 mm²
- Connection method
- COMBICON plug-in screw terminal block
- Stripping length
- 6 mm
- Tightening torque
- 0.4 Nm
Dimensions
- Depth
- 48 mm
- Height
- 65 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Interfaces
- Designation
- Modbus/TCP
- Interface
- Ethernet (RJ45)
- Serial transmission speed
- 10/100 Mbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Conformance
- CE-compliant
- UL, USA/Canada
- UL 61010-1
- CSA-C22.2 No. 61010-1
- cULus
