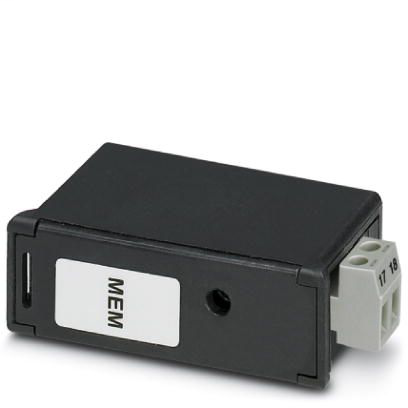

Phoenix Contact 2901370

Ambient conditions

• Ambient temperature (operation)
  • -10 °C - 55 °C (14 °F to 131 °F)
• Ambient temperature (storage/transport)
  • -20 °C - 85 °C (-4 °F - 185 °F)
• Max. permissible relative humidity (operation)
  • ≤ 95 %
• Max. salt spray content
  • ≤ 2.5 %

Connection data

• Conductor cross section AWG max.
  • 14
• Conductor cross section AWG min.
  • 20
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.5 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.5 mm²
• Connection method
  • COMBICON plug-in screw terminal block
• Stripping length
  • 6 mm
• Tightening torque
  • 0.4 Nm

Dimensions

• Depth
  • 48 mm
• Height
  • 65 mm
• Width
  • 22.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values

Input data

• Description of the input
  • Optocoupler input
• Input pulse length
  • ≥ 1 s
• Memory size
  • 512 kByte
• Number
  • 1
• Peak offstate voltage
  • 30 V DC
• Voltage input signal
  • 10 V DC - 30 V DC

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Conformance
  • CE-compliant
• UL, USA/Canada
  • cULus
  • UL 61010-1
  • CSA-C22.2 No. 61010-1
