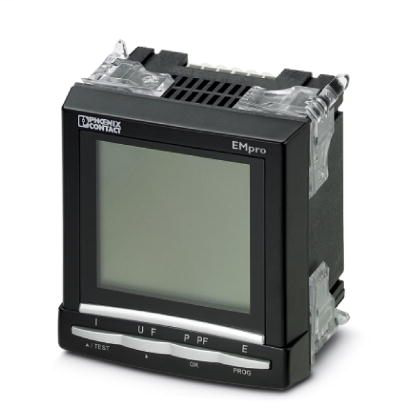

Phoenix Contact 2901364

Ambient conditions

• Ambient temperature (operation)
  • -10 °C - 55 °C (14 °F to 131 °F)
• Ambient temperature (storage/transport)
  • -20 °C - 85 °C (-4 °F - 185 °F)
• Max. permissible relative humidity (operation)
  • ≤ 95 %
• Max. salt spray content
  • ≤ 2.5 %

Connection data

• Conductor cross section AWG max.
  • 14
  • 8
• Conductor cross section AWG min.
  • 20
  • 20
• Conductor cross section flexible max.
  • 6 mm²
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.5 mm²
  • 0.5 mm²
• Conductor cross section solid max.
  • 6 mm²
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.5 mm²
  • 0.5 mm²
• Connection method
  • Screw connection
  • COMBICON plug-in screw terminal block
• Note
  • Current connection
  • Voltage and other connections
• Stripping length
  • 6 mm
  • 7 mm
• Tightening torque
  • 0.4 Nm

Dimensions

• Depth
  • 82 mm
• Height
  • 96 mm
• Installation depth with extension module
  • 80 mm
• Installation depth without extension module
  • 60 mm
• Width
  • 96 mm

Environmental Product Compliance

• China RoHS
  • No hazardous substances above threshold values
  • Environmentally friendly use period: unlimited = EFUP-e

Input data

• Acquisition of harmonics
  • up to 51st harmonic
• Active energy (IEC 62053-22)
  • Class 0.5 S
• Current measuring range
  • 0 A - 9999 A
• Current overload
  • 10 x IN for 1 s
• Input current
  • 9999 A (primary)
  • 5 A (secondary)
• Input current range
  • via external transformers
• Input name
  • Voltage measuring input V1, V2, V3
• Input voltage range
  • 28 V AC - 289 V AC (Phase/neutral conductor)
  • 50 V AC - 500 V AC (Phase/Phase)
• Measured value
  • AC sine (50/60 Hz)
• Measuring principle
  • True r.m.s. value measurement
• Messbereich_Leistung
  • 0 Mvar - 11 Mvar
  • 0 MW - 11 MW
  • 0 MVA - 11 MVA
• Overload capacity
  • 6 A (Permanent)
• Precision
  • 0.2 %
  • 0.2 %
  • 0.5 %
• Reactive power (IEC 62053-23)
  • Class 2
• Response threshold from measuring range nominal value
  • 5 mA

Interfaces

• Designation
  • via communication module

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Output description
  • Via function module

Standards and Regulations

• Conformance
  • CE-compliant
• UL, USA/Canada
  • UL 61010-1
  • cULus
  • CSA-C22.2 No. 61010-1

UL data

• Altitude
  • ≤ 2000 m
• Ambient temperature (operation)
  • 0 °C - 40 °C
• Max. permissible relative humidity (operation)
  • 50 % (at 40 °C)
  • 80 % (up to 31°C)
• Nominal supply voltage range
  • 120 V DC - 250 V DC ±10 %
  • 110 V AC - 240 V AC ±10 %
• Operating mode
  • Indoor use
• Overvoltage category
  • I, II, III
• Overvoltage category of the supply
  • Min. II
• Power consumption
  • 10 VA
• Supply voltage
  • 300 V AC
• Surge voltages
  • Transient overvoltage according to installation classes
