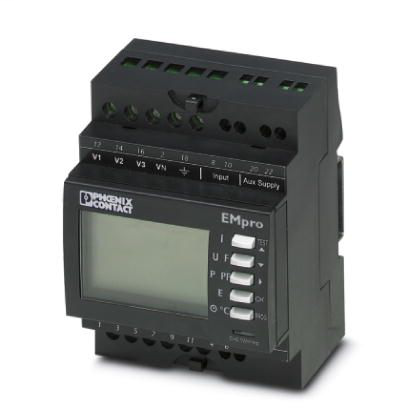

Phoenix Contact 2901363
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Energy measurement device to measure electrical parameters in low voltage installations up to 500 V, acquisition of total harmonic oscillations - can be expanded with RS-485 interfaceMeasuring instrument 2901363
Phoenix Contact 2901363 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -10 °C - 55 °C (14 °F to 131 °F)
- Ambient temperature (storage/transport)
- -20 °C - 70 °C (-4 °F - 158 °F)
- Max. permissible relative humidity (operation)
- ≤ 95 %
- Max. salt spray content
- ≤ 2.5 %
Connection data
- Conductor cross section AWG max.
- 14
- 10
- Conductor cross section AWG min.
- 20
- 20
- Conductor cross section flexible max.
- 2.5 mm²
- 4 mm²
- Conductor cross section flexible min.
- 0.5 mm²
- 0.5 mm²
- Conductor cross section solid max.
- 4 mm²
- 2.5 mm²
- Conductor cross section solid min.
- 0.5 mm²
- 0.5 mm²
- Connection method
- Screw connection
- Note
- Current and voltage connection
- other connections
- Stripping length
- 6 mm
- 6 mm
- Tightening torque
- 0.6 Nm
Dimensions
- Depth
- 64 mm
- Height
- 90 mm
- Width
- 72 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Input data
- Acquisition of harmonics
- up to 51st harmonic
- Active energy (IEC 62053-22)
- Class 0.5 S
- Description of the input
- Digital input
- Input current
- 5 A (secondary)
- 9999 A (primary)
- Input current range
- via external transformers
- Input name
- Voltage measuring input V1, V2, V3
- Input voltage range
- 28 V AC - 300 V AC (Phase/neutral conductor)
- 50 V AC - 519 V AC (Phase/Phase)
- Measured value
- AC sine (50/60 Hz)
- Measuring principle
- True r.m.s. value measurement
- Messbereich_Leistung
- 0 kW - 9999 kW
- 0 kvar - 9999 kvar
- 0 kVA - 9999 kVA
- Number
- 1
- Overload capacity
- 6 A (Permanent)
- Precision
- 0.5 %
- 0.2 %
- 0.2 %
- Reactive power (IEC 62053-23)
- Class 2
- Response threshold from measuring range nominal value
- 5 mA
- Voltage input signal
- 230 V AC ±10 % (Tariff switchover: e.g., day/nighttime tariff)
Interfaces
- Connection method
- Screw terminal blocks
- Designation
- Modbus RTU/JBUS
- Interface
- RS-485
- Serial transmission speed
- 2,4 - 38.4 kbps
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Current carrying capacity
- 27 mA
- Maximum switching voltage
- 30 V DC
- Number
- 1
- Output description
- Transistor output, active
Standards and Regulations
- Conformance
- CE-compliant
- UL, USA/Canada
- cULus
- CSA-C22.2 No. 61010-1
- UL 61010-1
UL data
- Altitude
- ≤ 2000 m
- Ambient temperature (operation)
- 5 °C - 40 °C
- Max. permissible relative humidity (operation)
- 80 % (up to 31°C)
- 50 % (at 40 °C)
- Nominal supply voltage range
- 110 V AC - 277 V AC -10 % - +15 %
- Operating mode
- Indoor use
- Overvoltage category
- I, II, III
- Overvoltage category of the supply
- Min. II
- Surge voltages
- Transient overvoltage according to installation classes
