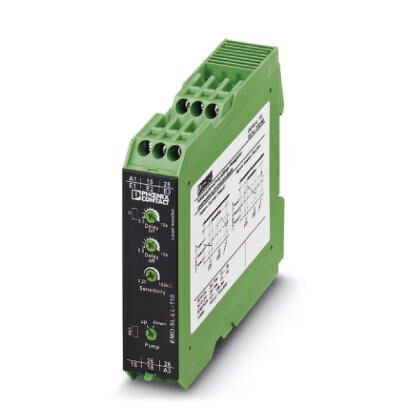

Phoenix Contact 2901137
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Monitoring relay for level monitoring of conductive fluids, minimum monitoring, maximum monitoring, 110 V AC supply voltage, 2 PDTsMonitoring relay - EMD-SL-LL-110 - 2901137
Phoenix Contact 2901137 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 40 °C (corresponds to UL 508)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 70 °C
- Degree of protection
- IP40 (Housing)
- IP20 (Connection terminal blocks)
- Noise immunity
- EN 61000-6-2
- Permissible humidity (operation)
- 15 % - 85 %
Connection data
- Conductor cross section AWG
- 20 - 14
- Conductor cross section flexible
- 0.25 mm² - 2.5 mm²
- Conductor cross section solid
- 0.5 mm² - 2.5 mm²
- Connection method
- Screw connection
- Stripping length
- 8 mm
- Tightening torque
- 1 Nm
Contact side
- Contact type
- 2 floating PDT contacts
- Interrupting rating (ohmic load) max.
- 750 VA (3 A/250 V AC, module aligned, ≤ 5 mm spacing)
- 1250 VA (5 A/250 V AC, module not aligned, ≥ 5 mm spacing)
- Maximum switching voltage
- 250 V AC (in acc. with IEC 60664-1)
- Output fuse
- 5 A (fast-blow)
Dimensions
- Depth
- 113 mm
- Height
- 90 mm
- Width
- 22.5 mm
Environmental Product Compliance
- China RoHS
- No hazardous substances above threshold values
- Environmentally friendly use period: unlimited = EFUP-e
Input data
- Function
- Pumping up (minimum monitoring), pumping down (maximum monitoring)
- Recovery time
- 500 ms
Power supply
- Supply voltage
- 110 V AC -10 % - +15 % AC
Standards and Regulations
- Electromagnetic compatibility
- Conformance with EMC Directive 2004/108/EC
- Insulation
- Basic insulation
- Low Voltage Directive
- Conformance with LV directive 2006/95/EC
- Noise emission
- EN 61000-6-3
- Noise immunity
- EN 61000-6-2
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 300 V
- Standards/regulations
- EN 50178
