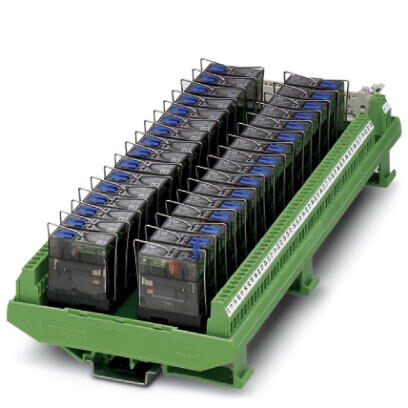

Phoenix Contact 2900891

Ambient conditions

• Ambient temperature (operation)
  • -20 °C - 50 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • IP00

Connection data

• Connection method
  • IDC/FLK pin strip
• Connection name
  • Controller level
• Number of connections
  • 1
• Number of positions
  • 50
• Pitch
  • 2.54 mm

Connection data 2

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Field level
• Screw thread
  • M3
• Stripping length
  • 8 mm

Connection data 3

• Conductor cross section AWG
  • 24 - 12
• Conductor cross section flexible
  • 0.2 mm² - 2.5 mm²
• Conductor cross section solid
  • 0.2 mm² - 4 mm²
• Connection method
  • Screw connection
• Connection name
  • Supply
• Number of connections
  • 4
• Screw thread
  • M3
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 62 mm
• Height
  • 112 mm
• Width
  • 285.5 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 50 years
• REACh SVHC
  • Lead 7439-92-1

Input data

• Input voltage range in reference to UN
  • 0.9 - 1.1 (observe derating)
• Nominal input voltage UN
  • 24 V DC
• Operating voltage display
  • Green LED
• Status display/channel
  • Yellow LED (integrated in relay)
• Type of protection
  • Free-wheeling diode (integrated in relay)
• Typical input current at UN
  • 18 mA
• Typical release time
  • 6 ms
• Typical response time
  • 9 ms

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Output data

• Contact material
  • AgNi
• Contact type
  • 1 PDT
• Interrupting rating (ohmic load) max.
  • 66 W (220 V DC)
  • 48 W (60 V DC)
  • 62 W (48 V DC)
  • 1250 VA (250 V AC)
  • 120 W (24 V DC)
  • 55 W (110 V DC)
• Limiting continuous current
  • 5 A
• Maximum switching voltage
  • 250 V AC/DC
• Minimum switching voltage
  • 12 V AC/DC
• Min. switching current
  • 10 mA

Standards and Regulations

• Designation
  • Air and creepage distances, output/output
• Overvoltage category
  • III
• Pollution degree
  • 2
• Rated insulation voltage
  • 260 V AC
• Rated surge voltage
  • 6 kV (Safe isolation and reinforced insulation between input circuit and output contact paths)
  • 4 kV (Basic insulation between output contact current paths)
• Standards/regulations
  • DIN EN 50178
  • IEC 60664

Supported controller

• Controller
  • MITSUBISHI MELSEC Q
  • MITSUBISHI MELSEC L
• suitable I/O card
  • LY41PT1P
  • QY82P
  • LY42PT1P
