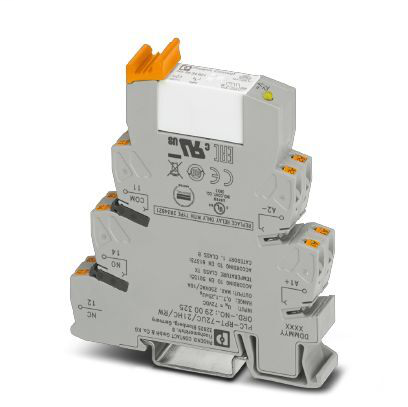

Phoenix Contact 2900325
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
PLC-INTERFACE for railway applications and high continuous currents, consisting of basic terminal block with push-in connection and plug-in miniature relay, range: 0.7 x UN to 1.25 x UN, temperature class TX: -40°C to +70°C, 1 PDT, input voltage 72 V DCRelay Module - PLC-RPT- 72UC/21HC/RW - 2900325
Phoenix Contact 2900325 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (Temperature class TX)
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- RT III (Relay)
- IP20 (Relay base)
Coil side
- Coil voltage
- 48 V DC
- Nominal input voltage UN
- 72 V DC
- Operating voltage display
- Yellow LED
- Power dissipation for nominal condition
- 0.43 W
- Protective circuit
- RCZ filter
- Free-wheeling diode Damping diode
- Bridge rectifier Bridge rectifier
- Surge protection
- Wide-range electronics
- Typical input current at UN
- 6 mA
- Typical release time
- 11 ms
- Typical response time
- 5 ms
Connection data
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- 0.2 mm² - 2.5 mm² (Single ferrule)
- 2x 0.5 mm² - 1 mm² (TWIN ferrule)
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Coil side
- Stripping length
- 8 mm
Connection data 2
- Conductor cross section AWG
- 26 - 14
- Conductor cross section flexible
- 0.14 mm² - 2.5 mm²
- 0.2 mm² - 2.5 mm² (Single ferrule)
- 2x 0.5 mm² - 1 mm² (TWIN ferrule)
- Conductor cross section solid
- 0.14 mm² - 2.5 mm²
- Connection method
- Push-in connection
- Connection name
- Contact side
- Stripping length
- 8 mm
Contact side
- Contact material
- AgNi
- Contact type
- 1 PDT
- Interrupting rating (ohmic load) max.
- 58 W (at 48 V DC)
- 75 W (at 220 V DC)
- 2500 VA (for 250 V AC)
- 50 W (at 110 V DC)
- 48 W (at 60 V DC)
- 240 W (at 24 V DC)
- Limiting continuous current
- 10 A (With inserted bridge 2967691)
- Maximum inrush current
- 30 A (300 ms)
- Maximum switching voltage
- 250 V AC/DC (Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules.)
- Minimum switching voltage
- 12 V (at 10 mA)
- Min. switching current
- 10 mA (at 12 V)
- Switching capacity
- 2 A (24 V (DC13))
- 6 A (230 V (AC 15))
- 0.2 A (220 V (DC13))
- Type of switch contact
- Single contact
Dimensions
- Depth
- 94 mm
- Height
- 80 mm
- Width
- 14 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
- REACh SVHC
- Lead 7439-92-1
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Standards and Regulations
- Connection in acc. with standard
- CUL
- Insulation
- Basic insulation
- Overvoltage category
- III
- Pollution degree
- 2
- Rated insulation voltage
- 250 V AC
- Rated surge voltage
- 6 kV
- Standards/regulations
- EN 61373
- EN 50178
- EN 50155 (VDE 0115 part 200)
- EN 50121
