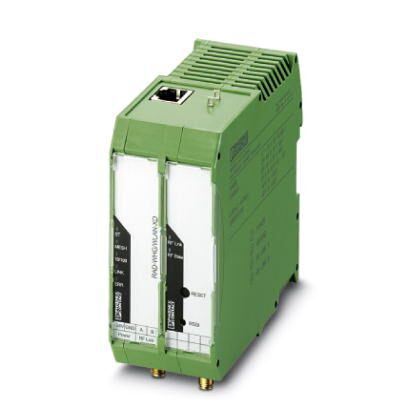

Phoenix Contact 2900178
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Gateway between WirelessHART field devices and 802.11b/gWirelessHART gateway - RAD-WHG/WLAN-XD - 2900178
Phoenix Contact 2900178 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
- Degree of protection
- IP20
Connection data
- Conductor cross section AWG max.
- 14
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 4 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Screw connection
- Screw thread
- M3
- Stripping length
- 8 mm
Dimensions
- Depth
- 114.5 mm
- Height
- 99 mm
- Width
- 45 mm
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Serial interface
- Connection method
- RJ45
- Serial transmission speed
- 10/100 Mbps
Standards and Regulations
- ATEX
- Ex nA IIC T4 Gc; Sira 10ATEX4252X
- Channel distance
- 5 MHz
- Conformance
- FCC Directive, Part 15.247
- ATEX 2014/34/EU
- CE-compliant (RED Directive 2014/53/EU)
- CE-compliant
- Electromagnetic compatibility
- Conformance with RED Directive 2014/53/EU
- IECEx
- Ex nA IIC T4; IECEx CSA 10.0008X
- Interface description
- WirelessHART
- WLAN as per IEEE 802.11 b/g
Supply
- Max. current consumption
- 300 mA (at 24 V DC)
- Nominal power consumption
- 5.1 W (typical)
- Supply voltage
- 24 V DC
- Supply voltage range
- 9 V DC - 30 V DC
- Typical current consumption
- 125 mA (at 24 V DC)
Wireless path
- Antenna
- External
- Antenna connection method
- RSMA (female)
- Channel distance
- 5 MHz
- Direction
- Bi-directional
- Frequency range
- 2.4 GHz - 2.472 GHz
- 2.4 GHz - 2.4835 GHz
- Interface description
- WirelessHART
- WLAN as per IEEE 802.11 b/g
- Note
- Test loops connect HART programming tool
- Number of channel groups
- 15
- 13
- Transmit capacity, maximum
- 10 dBm
- 20 dBm
- Transmit capacity, minimum
- 0 dBm
