Phoenix Contact 2900138
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

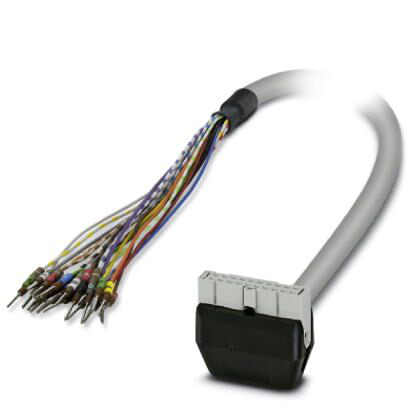

Round cable set; connection 1: Single wires (20-position) (The wires are marked and fitted with ferrules.); connection 2: IDC/FLK socket strip (1x 20-position, 90 °-out put); cable length: 0.5 mRound cable - VIP-CAB-FLK20/FR/OE/0,14/0,5M - 2900138
Phoenix Contact 2900138 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -40 °C - 70 °C (fixed installation)
- -10 °C - 70 °C (flexible installation)
- Ambient temperature (storage/transport)
- -40 °C - 80 °C
- Degree of protection
- ≥ IP54 (Installation location)
- IP00
- Maximum altitude
- ≤ 2000 m
Connection data
- Connection in acc. with standard
- IEC 60603-13
- Connection method
- IDC/FLK socket strip
- Connection name
- Field level
- Exit angle
- 90 °
- Insertion/withdrawal cycles
- > 50
- Number of connections
- 1
- Number of positions
- 20
- Pitch
- 2.54 mm
Connection data 2
- Connection method
- Single wires
- Connection name
- Controller level
- Note
- The wires are marked and fitted with ferrules.
- Number of positions
- 20
Environmental Product Compliance
- China RoHS
- Environmentally Friendly Use Period = 50 years
- For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
Standards and Regulations
- Designation
- Air clearances and creepage distances
- Flame resistance
- UL VW-1
- CSA FT-1
- IEC 60332-3-22
- IEC 60332-1-2
- VDE 0842, Part 332-1-2
- Gasoline resistance
- against occasional splashes
- Insulation
- Functional insulation
- Overvoltage category
- II
- Pollution degree
- 2
- Rated insulation voltage
- 63 V
- Rated surge voltage
- 0.6 kV
- Resistance to oil
- against occasional splashes
- Standards/regulations
- DIN EN 50178
Supported controller
- Controller
- universal
