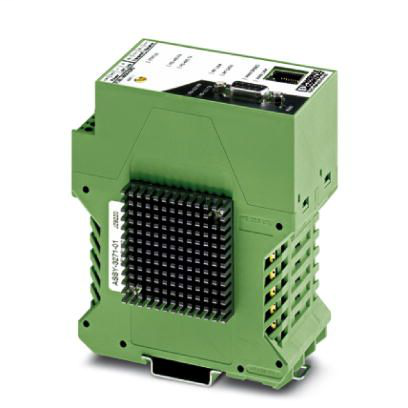

Phoenix Contact 2900016

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 65 °C
• Ambient temperature (storage/transport)
  • -40 °C - 75 °C
• Degree of protection
  • IP20

Connection data

• Conductor cross section AWG max.
  • 14
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 4 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 8 mm

Dimensions

• Depth
  • 115 mm
• Height
  • 99 mm
• Width
  • 52 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50
  • For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Note

• Trade restriction
  • The products are offered exclusively for export outside the EU and the European Economic Area.

Serial interface

• Connection method
  • COMBICON plug-in screw terminal block
  • D-SUB-9 female connector
• Data flow control/protocols
  • RTS/CTS
• Data rate
  • 300 - 57,6 kBit/s
• Designation
  • RS-485/RS-422
  • RS-232
• File format/coding
  • Asynchronous

Standards and Regulations

• Conformance
  • ISC Directive RSS 210
  • FCC Directive, Part 15.247
• UL, USA/Canada
  • Class I, Div. 2, Groups A, B, C, D

Supply

• Max. current consumption
  • 250 mA (at 24 V DC)
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 11 V DC - 30 V DC

Wireless path

• Direction
  • Bi-directional
• Frequency range
  • 902 MHz - 928 MHz
• Transmission power
  • 1 W (adjustable in 1 dBm increments)
• Transmit capacity, maximum
  • 30 dBm
• Transmit capacity, minimum
  • 10 dBm

Wireless set

• Set contents
  • 1 transceiver
