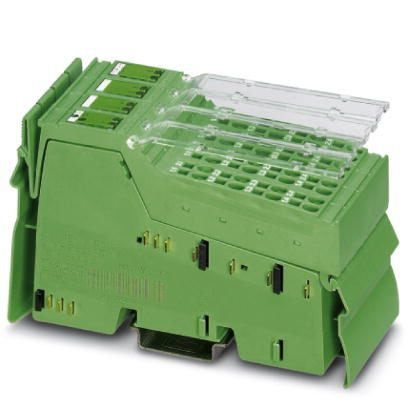

Phoenix Contact 2897606
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Inline Modular analog input terminal; 8 inputs, RTD (resistance temperature detector), 4-wire connection method, complete with individually numbered I/O connectors, transmission speed 2MBDInline terminal 2897606
Phoenix Contact 2897606 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Air pressure (operation)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Air pressure (storage/transport)
- 70 kPa - 106 kPa (up to 3000 m above sea level)
- Ambient temperature (operation)
- -25 °C - 55 °C
- Ambient temperature (storage/transport)
- -25 °C - 85 °C
- Degree of protection
- IP20
- Permissible humidity (operation)
- 10 % - 95 % (non-condensing)
- Permissible humidity (storage/transport)
- 10 % - 95 % (non-condensing)
Analog inputs
- Connection method
- Spring-cage connection
- Connection technology
- 4-wire
- Data formats
- IB IL, S7-compatible
- Description of the input
- Input for resistive temperature sensors
- Input filter time
- 100 ms
- Input name
- Analog RTD inputs
- Linear resistance measuring range
- 0 Ω - 5 kΩ
- 0 Ω - 500 Ω
- 0 Ω - 30 kΩ
- Measured value representation
- 16 bits (15 bits + sign bit)
- Measuring principle
- Sigma/Delta process
- Note regarding the connection technology
- shielded
- Number of inputs
- 8 (for resistance temperature detectors)
- Process data update
- 1.8 s (Up to 3.3 s possible depending on operating mode)
- Resolution A/D
- 24 bit
- Sensor types (RTD) that can be used
- Pt, Ni, KTY, Cu sensors, linear resistors
Dimensions
- Depth
- 71.5 mm
- Height
- 119.8 mm
- Note on dimensions
- Housing dimensions
- Width
- 48.8 mm
Electrical isolation
- Test section
- 7.5 V supply (bus logic), 24 V supply UANA / I/O 500 V AC 50 Hz 1 min.
- I/O / functional earth ground 500 V AC 50 Hz 1 min.
- 7.5 V supply (bus logic), 24 V supply UANA/functional earth ground 500 V AC 50 Hz 1 min.
Environmental Product Compliance
- China RoHS
- Environmentally friendly use period: unlimited = EFUP-e
- No hazardous substances above threshold values
Inline potentials
- Current consumption
- typ. 6 mA
- typ. 115 mA
- Designation
- Supply of analog modules (UANA)
- Communications power (UL)
- Power consumption
- typ. 1.01 W (entire device)
- Supply voltage
- 7.5 V DC (via voltage jumper)
- 24 V DC (via voltage jumper)
- Supply voltage range
- 19.2 V DC - 30 V DC (including all tolerances, including ripple)
Interfaces
- Connection method
- Inline data jumper
- Designation
- Inline local bus
- Transmission physics
- Copper
- Transmission speed
- 2 Mbps
Standards and Regulations
- Protection class
- III, IEC 61140, EN 61140, VDE 0140-1
