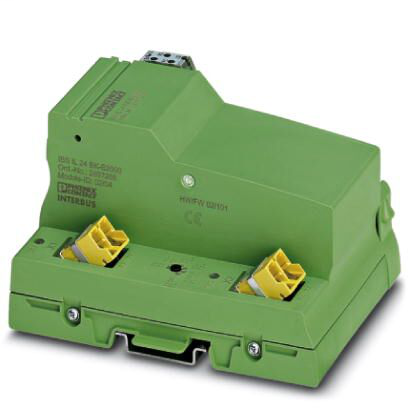

Phoenix Contact 2897169

Ambient conditions

• Air pressure (operation)
  • 70 kPa - 106 kPa
• Air pressure (storage/transport)
  • 70 kPa - 106 kPa
• Ambient temperature (operation)
  • -25 °C - 55 °C
• Ambient temperature (storage/transport)
  • -25 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 10 % - 95 %
• Permissible humidity (storage/transport)
  • 10 % - 95 %

Dimensions

• Depth
  • 71.5 mm
• Height
  • 119.8 mm
• Width
  • 90 mm

Electrical isolation

• Test section
  • 7.5 V communications power, 24 V analog supply, 24 V bus coupler supply/functional earth ground 1000 V DC 1 min.

Environmental Product Compliance

• China RoHS
  • Environmentally friendly use period: unlimited = EFUP-e
  • No hazardous substances above threshold values
• REACh SVHC
  • Lead 7439-92-1

Inline potentials

• Current consumption
  • typ. 60 mA (without connected Inline I/O terminals)
  • max. 960 mA (with max. number of connected I/O terminal blocks)
• Designation
  • Communications power (UL)
  • Supply of analog modules (UANA)
  • Bus coupler supply UBC; Communications power UL (7.5 V) and the analog supply UANA (24 V) are generated from the bus coupler supply.
• Power supply unit
  • max. 0.5 A DC
  • max. 1 A DC
• Supply voltage
  • 24 V DC
  • 24 V DC (via Inline connector)
  • 7.5 V DC ±5 %
• Supply voltage range
  • 19.2 V DC - 30 V DC (including all tolerances, including ripple)

Interfaces

• Connection method
  • E2000
  • Inline data jumper
• Designation
  • Inline local bus
  • INTERBUS
• No. of channels
  • 2
• Transmission speed
  • 500 kbps

System limits of the bus coupler

• Number of devices with parameter channel
  • max. 63
• Number of local bus devices that can be connected
  • max. 63
• Number of supported branch terminals with remote bus branch
  • 0
