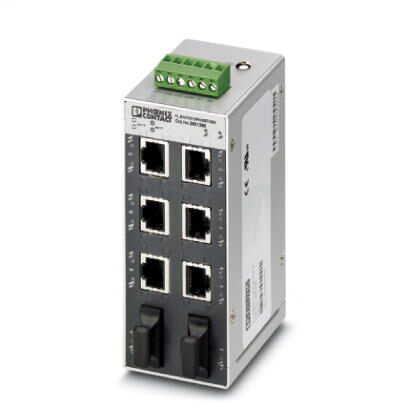

Phoenix Contact 2891563

Ambient conditions

• Air pressure (operation)
  • 86 kPa - 108 kPa (up to 1500 m above sea level)
• Air pressure (storage/transport)
  • 66 kPa - 108 kPa (up to 3500 m above sea level)
• Ambient temperature (operation)
  • 0 °C - 60 °C
• Ambient temperature (storage/transport)
  • -20 °C - 70 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Dimensions

• Depth
  • 70 mm
• Height
  • 120 mm
• Width
  • 50 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 10;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Function

• Additional functions
  • Jumbo frames (Max. 9,600 bytes)
  • Autonegotiation
• Basic functions
  • Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
• PROFINET conformance class
  • Conformance-Class A
• Signal contact control voltage
  • Monitoring of the redundant supply voltage
• Status and diagnostic indicators
  • LEDs: US₁, US₂ (redundant voltage supply), link and activity per port

Interfaces

• Connection method
  • Plug-in/screw connection via COMBICON
• Interface
  • Potential-free signaling contact
  • Fiber optic interface
  • Ethernet (RJ45)
• No. of ports
  • 6 (RJ45 ports)
  • 2 (SC single mode)
• Note on the connection method
  • Auto negotiation and autocrossing
• Transmission length
  • 20000 m (Fiberglass 9/125)
• Transmission physics
  • Ethernet in RJ45 twisted pair
  • Single-mode fiberglass
• Transmission speed
  • 10/100/1000 Mbps
  • 1000 Mbps (full duplex)
• Wavelength
  • 1310 nm

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Electromagnetic compatibility
  • Conformance with EMC Directive 2004/108/EC
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2:2005
• Vibration (operation)
  • in acc. with IEC 60068-2-6: 5g, 150 Hz
• Vibration (storage/transport)
  • 5g, 150 Hz, in acc. with IEC 60068-2-6

Supply voltage

• Residual ripple
  • 3.6 VPP (within the permitted voltage range)
• Supply voltage
  • 24 V DC (redundant)
• Supply voltage range
  • 9 V DC - 32 V DC
• Typical current consumption
  • 360 mA (at US = 24 V DC)
