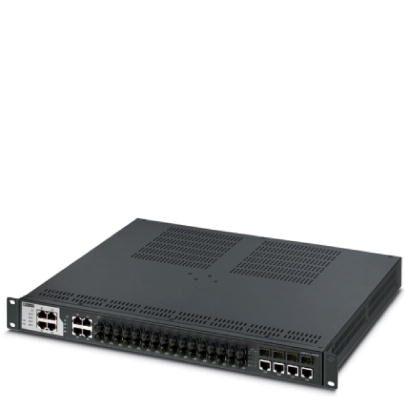

Phoenix Contact 2891086

Ambient conditions

• Air pressure (operation)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Air pressure (storage/transport)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Ambient temperature (operation)
  • -40 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Dimensions

• Depth
  • 375 mm
• Height
  • 44 mm
• Width
  • 442 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 10;

Function

• Basic functions
  • Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
• Redundancy
  • ERR (Extended ring redundancy)
• Status and diagnostic indicators
  • LEDs: US₁, US₂ (redundant voltage supply), link and activity per port

Interfaces

• Connection method
  • Combo
• Interface
  • Ethernet (RJ45)
  • Ethernet (RJ45/FO combo)
• No. of ports
  • 4
  • 8 (RJ45 ports)
  • 16 (Single mode)
• Note on the connection method
  • Auto negotiation and autocrossing (RJ45 interface)
  • Auto negotiation and autocrossing
• Transmission length
  • 40 km (typical)
  • 100 m
• Transmission physics
  • Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps)
  • Single-mode fiberglass
  • Ethernet in RJ45 twisted pair
• Transmission speed
  • 100 Mbps (Full duplex)
  • 10/100/1000 Mbps
  • 10/100 Mbps

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Standards and Regulations

• Noise emission
  • EN 61000-6-4
• Noise immunity
  • IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
• Test result
  • 5g, 150 Hz, Criterion 3
  • 30g, 11 ms half-sine shock pulse
• Type of test
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6

Supply voltage

• Current consumption
  • 476 mA (115 V AC from FL SWITCH 4800E-P5)
• Inrush current
  • 19.2 A (48 V DC from FL SWITCH 4800E-P1)
