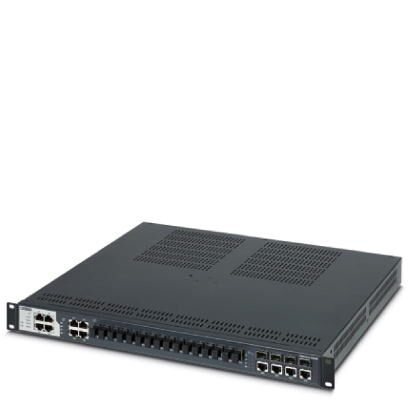

Phoenix Contact 2891073

Ambient conditions

• Air pressure (operation)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Air pressure (storage/transport)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Ambient temperature (operation)
  • -40 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Dimensions

• Depth
  • 375 mm
• Height
  • 44 mm
• Width
  • 442 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 10;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Function

• Basic functions
  • Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
• Redundancy
  • ERR (Extended ring redundancy)
• Status and diagnostic indicators
  • LEDs: US₁, US₂ (redundant voltage supply), link and activity per port

Interfaces

• Connection method
  • Combo
• Interface
  • Fiber optic interface
  • Ethernet (RJ45/FO combo)
  • Ethernet (RJ45)
• No. of ports
  • 16 (Multi mode)
  • 8 (RJ45 ports)
  • 4
• Note on the connection method
  • Auto negotiation and autocrossing
  • Auto negotiation and autocrossing (RJ45 interface)
• Transmission length
  • 9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
  • 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
  • 3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
  • 5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800)
  • 100 m
• Transmission physics
  • Ethernet in RJ45 twisted pair
  • multi-mode fiberglass
  • Ethernet RJ45 (10/100/1000 Mbps) or SFP (1000 Mbps)
• Transmission speed
  • 10/100 Mbps
  • 10/100/1000 Mbps
  • 100 Mbps (Full duplex)
• Wavelength
  • 1300/1310 nm

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• Noise emission
  • EN 61000-6-4
• Noise immunity
  • IEC 61850-3, IEEE 1613, EN 61000-6-2: 2005
• Test result
  • 5g, 150 Hz, Criterion 3
  • 30g, 11 ms half-sine shock pulse
• Type of test
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6

Supply voltage

• Current consumption
  • 553 mA (115 V AC from FL SWITCH 4800E-P5)
• Inrush current
  • 19 A (48 V DC from FL SWITCH 4800E-P1)
