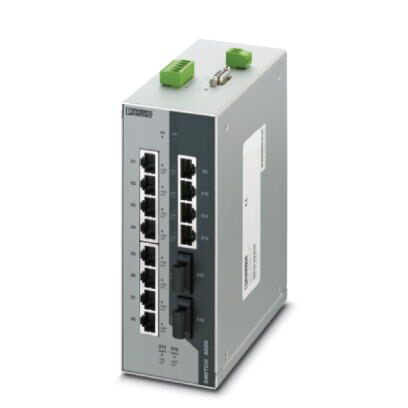

Phoenix Contact 2891063

Ambient conditions

• Air pressure (operation)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Air pressure (storage/transport)
  • 57 kPa - 108 kPa (up to 4850 m above mean sea level)
• Ambient temperature (operation)
  • -40 °C - 75 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Connection data

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Pluggable COMBICON screw connections
• Stripping length
  • 7 mm

Dimensions

• Depth
  • 140 mm
• Height
  • 173 mm
• Width
  • 66 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 10;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

Function

• Basic functions
  • Store and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
• Redundancy
  • ERR (Extended ring redundancy)
• Status and diagnostic indicators
  • LEDs: US₁, US₂ (redundant voltage supply), link and activity per port

Interfaces

• Connection method
  • RJ45
• Interface
  • Fiber optic interface
  • Ethernet (RJ45)
• No. of ports
  • 2 (SC multi-mode)
  • 12 (RJ45 ports)
  • 2 (RJ45 ports)
• Note on the connection method
  • Auto negotiation and autocrossing
• Transmission length
  • 100 m
  • 6400 m
  • 8 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
  • 5.3 km (fiberglass with F-G 50/125 1.6 dB/km F800)
  • 3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
  • 9.6 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
• Transmission physics
  • multi-mode fiberglass
  • Ethernet in RJ45 twisted pair
• Transmission speed
  • 100 Mbps (full duplex)
  • 10/100 Mbps
  • 10/100/1000 Mbps
• Wavelength
  • 1300 nm

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Standards and Regulations

• ATEX
  • II 3 G Ex nA nC IIC T4 Gc
• Conformance
  • CE-compliant
• IECEx
  • Ex nA nC IIC T4 Gc
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2:2005
• Test result
  • 30g, 11 ms half-sine shock pulse
  • 5g, 150 Hz, Criterion 3
  • 1 m
• Type of test
  • Free fall in acc. with IEC 60068-2-32
  • Shock in acc. with EN 60068-2-27/IEC 60068-2-27
  • Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
• UL, USA/Canada
  • Class I, Div. 2, Groups A, B, C, D

Supply voltage

• Inrush current
  • 7.7 A (200 µs)
• Residual ripple
  • 3.6 VPP (within the permitted voltage range)
• Supply voltage
  • 24 V DC (redundant)
• Supply voltage range
  • 12 V DC - 48 V DC
• Typical current consumption
  • 474 mA (at US = 24 V DC)
