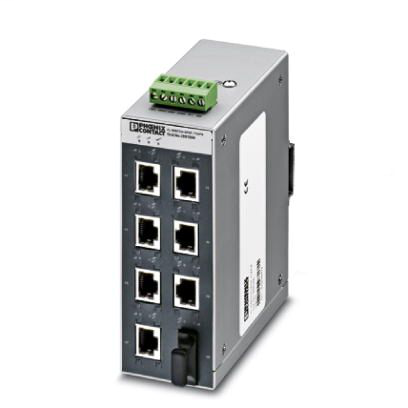

Phoenix Contact 2891006

Ambient conditions

• Air pressure (operation)
  • 62 kPa - 108 kPa (up to 4160 m above mean sea level)
• Air pressure (storage/transport)
  • 62 kPa - 108 kPa (up to 4160 m above mean sea level)
• Ambient temperature (operation)
  • -40 °C - 75 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20
• Permissible humidity (operation)
  • 5 % - 95 % (non-condensing)
• Permissible humidity (storage/transport)
  • 5 % - 95 % (non-condensing)

Dimensions

• Depth
  • 100 mm
• Height
  • 130 mm
• Width
  • 50 mm

Environmental Product Compliance

• China RoHS
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
  • Environmentally Friendly Use Period = 10;
• REACh SVHC
  • Lead 7439-92-1

Function

• Additional functions
  • Autonegotiation
• Basic functions
  • Unmanaged switch / autonegotiation, complies with IEEE 802.3, store and forward switching mode, includes QoS and alarm contact
• Status and diagnostic indicators
  • LEDs: US₁, US₂ (redundant voltage supply), link and activity per port

Interfaces

• Interface
  • Fiber optic interface
  • Ethernet (RJ45)
• No. of ports
  • 7 (RJ45 ports)
  • 1 (SC multi-mode)
• Note on the connection method
  • Auto negotiation and autocrossing
• Transmission length
  • 3.1 km (fiberglass with F-G 50/125 1.6 dB/km F800)
  • 7.1 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
  • 3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
  • 12.1 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
• Transmission physics
  • Ethernet in RJ45 twisted pair
  • multi-mode fiberglass
• Transmission speed
  • 10/100 Mbps
  • 100 Mbps (full duplex)
• Wavelength
  • 1300 nm

Network expansion parameters

• Cascading depth
  • Network, linear, and star structure: any
• Maximum conductor length (twisted pair)
  • 100 m

Note

• Utilization restriction
  • EMC: class A product, see manufacturer's declaration in the download area

Standards and Regulations

• ATEX
  • II 3 G Ex nA nC IIC T4 Gc
• Conformance
  • CE-compliant
• Electromagnetic compatibility
  • Conformance with EMC Directive 2004/108/EC
• IECEx
  • Ex nA nC IIC T4 Gc
• Noise emission
  • EN 61000-6-4
• Noise immunity
  • EN 61000-6-2
• UL, USA/Canada
  • Class I, Div. 2, Groups A, B, C, D

Supply voltage

• Max. current consumption
  • 565 mA (@9 V DC)
• Residual ripple
  • 3.6 VPP (within the permitted voltage range)
• Supply voltage
  • 24 V DC (redundant)
• Supply voltage range
  • 9 V DC - 32 V DC
• Typical current consumption
  • 180 mA (at US = 24 V DC)
