Phoenix Contact 2882417
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

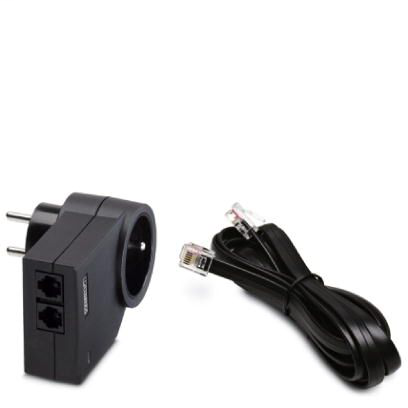

Socket attachment plug with surge protection for the power supply and signal connection of an end device with analog or digital telecommunications interface (VDSL up to 50 Mbps, on short paths (< 300 m) up to 80 Mbps). Cable is included.Type 3 surge protection device - MNT-TELE E - 2882417
Phoenix Contact 2882417 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 75 °C
- Ambient temperature (storage/transport)
- -25 °C - 75 °C
Connection, equipotential bonding, information technology
- Connection method
- Via protective contact plug
Connection (protective circuit, power supply)
- Connection method
- Grounding plug/socket
- Connection method IN
- Grounding plug
- Connection method OUT
- Grounding socket
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Power supply, general
- Connection method
- RJ12
- Connection method IN
- RJ12 female connector
- Connection method OUT
- RJ12 female connector
Protective circuit, information technology
- Alternating current carrying capacity (line-earth)
- 10 A - 1 s
- Alternating current carrying capacity (line-line)
- 250 mA - 1 s
- Arrester rated voltage UC
- 200 V DC
- Capacity (line-earth)
- typ. 5 pF
- Capacity (line-line)
- typ. 1 nF
- Cut-off frequency fg (3 dB), sym. in 100 Ohm system
- typ. 4 MHz
- Cut-off frequency fg (3 dB), sym. in 150 Ohm system
- typ. 3 MHz
- Cut-off frequency fg (3 dB), sym. in 600 Ohm system
- typ. 700 kHz
- Impulse durability (line-earth)
- D1 - 500 A
- C3 - 100 A
- C2 - 4 kV / 2 kA
- Impulse durability (line-line)
- C3 - 25 A
- C2 - 2 kV / 1 kA
- Insulation resistance Riso
- ≥ 1 MΩ
- ≥ 1 GΩ
- Max. discharge current Imax (8/20) µs
- 2.5 kA
- Nominal discharge current In (8/20) µs (line-earth)
- 2.5 kA
- Nominal discharge current In (8/20) µs (line-line)
- 1 kA
- Operating effective current IC at UC
- ≤ 150 µA
- Output voltage limitation at 1 kV/µs (wire-wire)
- ≤ 360 V
- Pulse reset time (line-line)
- ≤ 15 ms
- Rated current
- 150 mA (25 °C)
- Residual current IPE
- ≤ 2 µA
- Residual voltage at In (line-earth)
- ≤ 30 V
- Residual voltage at In (line-line)
- ≤ 500 V
- Residual voltage with Ian (10/1000) µs (line-earth)
- ≤ 35 V
- Residual voltage with Ian (10/1000) µs (line-line)
- ≤ 35 V
- Response time tA (line-earth)
- ≤ 100 ns
- Response time tA (line-line)
- ≤ 25 ns
- Voltage protection level Up (line-earth)
- ≤ 900 V (C3 - 100 A)
- ≤ 900 V (C2 - 2 kA)
- Voltage protection level Up (line-line)
- ≤ 350 V (C3 - 25 A)
- ≤ 460 V (C2 - 1 kA)
Protective circuit, power supply
- Arrester rated voltage UC (L-N)
- 275 V AC
- Arrester rated voltage UC (L-PE)
- 360 V AC
- Arrester rated voltage UC (N-PE)
- 360 V AC
- Combination wave UOC
- 4 kV
- Energy absorption symmetrical
- 140 J (L-N)
- Enery absorption, asymmetrical
- 220 J (L(N)-PE)
- EN type
- T3
- Max. required back-up fuse
- 16 A (gG / B / C)
- Nominal discharge current In (8/20) µs
- 3 kA (> 5x)
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 230 V AC
- Rated load current IL
- 16 A (30 °C)
- Residual current IPE
- ≤ 5 µA
- Response time (L-N)
- ≤ 25 ns
- Response time (L-PE)
- ≤ 100 ns
- Response time (N-PE)
- ≤ 100 ns
- Standby power consumption PC
- ≤ 1 VA
- Surge protection fault message
- optical
- Voltage protection level Up (L-N)
- ≤ 1.2 kV
- Voltage protection level Up (L-PE)
- ≤ 1.5 kV
- Voltage protection level Up (N-PE)
- ≤ 1.5 kV
Standards (protective circuit, information technology)
- IEC test classification
- C2
- C1
- C3
- D1
