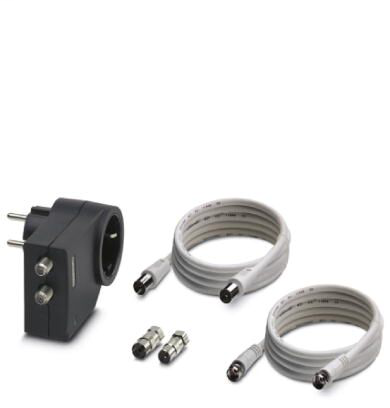

Phoenix Contact 2882307
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Socket attachment plug with surge protection for the power supply unit and signal connection for radio and television equipment (cable, terrestrial antenna, satellite system). Cable is provided.Type 3 surge protection device - MNT-TV-SAT B/F - 2882307
Phoenix Contact 2882307 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -25 °C - 75 °C
- Ambient temperature (storage/transport)
- -25 °C - 75 °C
Connection, equipotential bonding, information technology
- Connection method
- Via protective contact plug
Connection (protective circuit, power supply)
- Connection method
- Grounding plug/socket
- Connection method IN
- Protective contact plug CEE7
- Connection method OUT
- Protective contact socket CEE7
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Power supply, general
- Connection method
- F connector
- Connection method IN
- F connector, female
- Connection method OUT
- F connector, female
Protective circuit, information technology
- Alternating current carrying capacity (line-shield)
- 5 A - 1 s
- Alternating current carrying capacity (shield-earth)
- 10 A - 1 s
- Arrester rated voltage UC
- 24 V DC
- Capacity asymmetrical (shield)
- typ. 10 pF
- Cut-off frequency fg (3 dB), asym. (shield) in 75 Ohm system
- typ. 2.5 GHz
- Frequency range
- 0 Hz - 2400 MHz
- Impulse durability (line-shield)
- C3 - 7.5 kV/100 A
- C2 - 4 kV/2 kA
- Impulse durability (shield-earth)
- C2 - 10 kV/5 kA
- C3 - 7.5 kV/100 A
- D1 - 1 kA
- Input attenuation aE, asym.
- typ. 0.3 dB (≤ 2.4 GHz)
- Insulation resistance Riso
- ≥ 70 MΩ
- Nominal discharge current In (8/20) µs (line-earth)
- 2.5 kA
- Nominal discharge current In (8/20) µs (line-shield)
- 2.5 kA
- Nominal discharge current In (8/20) µs (shield-earth)
- 5 kA
- Nominal pulse current ian (10/1000) µs, asym. (shield)
- 120 A
- Operating effective current IC at UC
- ≤ 1 µA
- Pulse reset time (line-shield)
- ≤ 4 s
- Rated current
- 1.5 A (25 °C)
- Residual current IPE
- ≤ 1 µA
- Residual voltage at In (line-shield)
- ≤ 40 V
- Residual voltage at In (shield-earth)
- ≤ 50 V
- Response time tA (line-shield)
- ≤ 100 ns
- Response time tA (shield-earth)
- ≤ 100 ns
- Voltage protection level Up (line-shield)
- ≤ 700 V (C2 - 2 kA)
- Voltage protection level Up (shield-earth)
- ≤ 1.2 kV (C2 - 5 kA)
Protective circuit, power supply
- Arrester rated voltage UC (L-N)
- 275 V AC
- Arrester rated voltage UC (L-PE)
- 360 V AC
- Arrester rated voltage UC (N-PE)
- 360 V AC
- Combination wave UOC
- 4 kV
- Energy absorption symmetrical
- 140 J (L-N)
- Enery absorption, asymmetrical
- 220 J (L(N)-PE)
- EN type
- T3
- Max. required back-up fuse
- 16 A (gG / B / C)
- Nominal discharge current In (8/20) µs
- 3 kA (> 5x)
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 230 V AC
- Rated load current IL
- 16 A (30 °C)
- Residual current IPE
- ≤ 5 µA
- Response time (L-N)
- ≤ 25 ns
- Response time (L-PE)
- ≤ 100 ns
- Response time (N-PE)
- ≤ 100 ns
- Standby power consumption PC
- ≤ 1 VA
- Surge protection fault message
- optical
- Voltage protection level Up (L-N)
- ≤ 1.2 kV
- Voltage protection level Up (L-PE)
- ≤ 1.5 kV
- Voltage protection level Up (N-PE)
- ≤ 1.5 kV
Standards (protective circuit, information technology)
- IEC test classification
- C3
- C2
- D1
