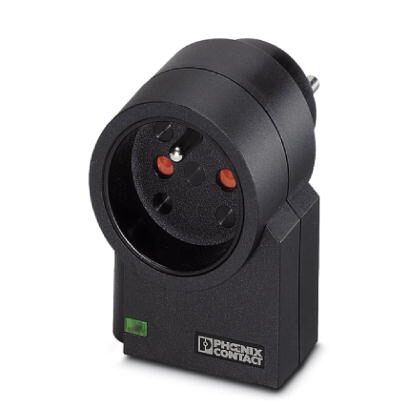

Phoenix Contact 2882226
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Attachment plug with surge protection for mains sockets, optical power and error display.Type 3 surge protection device - MNT-NET B/F - 2882226
Phoenix Contact 2882226 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Altitude
- ≤ 2000 m (amsl (above mean sea level))
- Ambient temperature (operation)
- -25 °C - 75 °C
- Ambient temperature (storage/transport)
- -25 °C - 75 °C
- Degree of protection
- IP20 (Child-proofing)
- Permissible humidity (operation)
- 5 % - 95 %
Connection data
- Connection method
- Grounding plug/socket
Dimensions
- Depth
- 79 mm
- Height
- 76 mm
- Width
- 56 mm
Environmental Product Compliance
- REACh SVHC
- Lead 7439-92-1
Protective circuit
- Combination wave UOC
- 4 kV
- Max. backup fuse with branch wiring
- 16 A (gG / B / C)
- Maximum continuous operating voltage UC (L-N)
- 275 V AC
- Maximum continuous operating voltage UC (L-PE)
- 360 V AC
- Maximum continuous operating voltage UC (N-PE)
- 360 V AC
- Max. required back-up fuse
- 16 A (gG / B / C)
- Nominal discharge current In (8/20) µs
- 3 kA (> 5x)
- Nominal frequency fN
- 50 Hz (60 Hz)
- Nominal voltage UN
- 230/400 V AC (TN)
- 230/400 V AC (TT - only in use with RCD)
- Rated load current IL
- 16 A (30 °C)
- Reference test voltage UREF
- 255 V AC
- Residual current IPE
- ≤ 5 µA
- Response time tA (L-N)
- ≤ 25 ns
- Response time tA (L-PE)
- ≤ 100 ns
- Response time tA (N-PE)
- ≤ 100 ns
- Short-circuit current rating ISCCR
- 1.5 kA AC
- Standby power consumption PC
- ≤ 1 VA
- TOV behavior at UT (L-N)
- 440 V AC (120 min / safe failure mode)
- 335 V AC (5 s / withstand mode)
- TOV behavior at UT (L-PE)
- 440 V AC (120 min / withstand mode)
- 1455 V AC (200 ms / safe failure mode)
- 440 V AC (5 s / withstand mode)
- TOV behavior at UT (N-PE)
- 1200 V AC (200 ms / safe failure mode)
- Voltage protection level Up (L-N)
- ≤ 1.2 kV
- Voltage protection level Up (L-PE)
- ≤ 1.5 kV
- Voltage protection level Up (N-PE)
- ≤ 1.5 kV
Standards and Regulations
- Standards/specifications
- IEC 61643-11 2011
- EN 61643-11 2012
