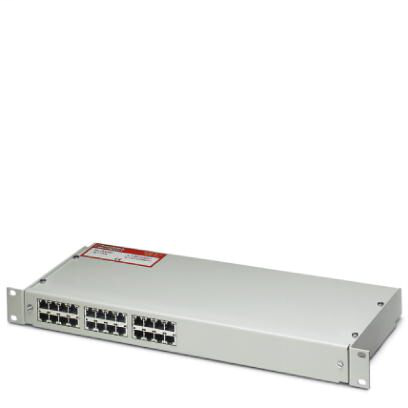

Phoenix Contact 2880150

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 80 °C
• Degree of protection
  • IP20

Connection data

• Connection method
  • RJ45
• Connection method IN
  • RJ45 socket
• Connection method OUT
  • RJ45 socket
• Connection technology
  • Network interfaces (e.g. Ethernet, Token Ring and CDDI/FDDI)

Dimensions

• Depth
  • 160 mm
• Height
  • 44 mm
• Height unit
  • 1 U
• Width
  • 483 mm

Environmental Product Compliance

• REACh SVHC
  • Lead 7439-92-1

Protective circuit

• Capacity (line-earth)
  • typ. 1 pF
• Capacity (line-line)
  • typ. 20 pF
• Cut-off frequency fg (3 dB), sym. in 100 Ohm system
  • > 100 MHz
• IEC test classification
  • C2
  • C1
  • C3
  • B3
• Impulse durability (line-earth)
  • C1 - 500 V / 250 A
• Impulse durability (line-line)
  • C1 - 500 V / 250 A
• Impulse durability (shield-earth)
  • C2 - 4 kV/2 kA
• Input attenuation aE, sym.
  • typ. 1 dB (≤ 100 MHz)
• Maximum continuous voltage UC
  • 6 V DC (Core - core)
• Maximum continuous voltage UC (line-earth)
  • 68 V DC (optional: +/- 6 V DC)
• Near-end crosstalk attenuation
  • typ. 36 dB (100 Ω system / 100 MHz)
• Nominal discharge current In (8/20) µs (line-earth)
  • 350 A
• Nominal discharge current In (8/20) µs (line-line)
  • 350 A
• Nominal discharge current In (8/20) µs (shield-earth)
  • 2.5 kA (with insulated housing)
• Nominal pulse current Ian (10/1000) µs (line-earth)
  • 100 A
• Nominal pulse current Ian (10/1000) µs (line-line)
  • 100 A
• Operating effective current IC at UC
  • ≤ 1 mA
• Output voltage limitation at 1 kV/µs (line-earth) static
  • ≤ 30 V (J2 plugged)
  • ≤ 170 V (J2 unplugged)
• Output voltage limitation at 1 kV/µs (line-line) static
  • ≤ 20 V
• Output voltage limitation at 1 kV/µs (shield-earth) static
  • ≤ 700 V (with insulated shield)
• Rated current
  • 1.5 A (25 °C)
• Residual current IPE
  • ≤ 1 mA (jumper 2 unplugged)
• Residual voltage at In (line-earth)
  • ≤ 220 V (J2 OFF)
  • ≤ 45 V (J2 ON)
• Residual voltage at In (line-line)
  • ≤ 65 V
• Residual voltage at In (shield-earth)
  • ≤ 700 V
• Response time tA (line-earth)
  • ≤ 1 ns
• Response time tA (line-line)
  • ≤ 1 ns
• Response time tA (line-shield)
  • ≤ 100 ns
• Surge protection fault message
  • none
• Total discharge current Itotal (8/20) µs
  • 10 kA
• Voltage protection level Up (line-earth)
  • ≤ 40 V (C1 - 500 V / 250 A (J2 ON))
  • ≤ 180 V (C1 - 500 V / 250 A (J2 OFF))
• Voltage protection level Up (line-line)
  • ≤ 50 V (C1 - 500 V / 250 A)
• Voltage protection level Up (shield-earth)
  • ≤ 800 V (with insulated housing)

Standards and Regulations

• Standards/regulations
  • DIN EN 50173-1
  • IEC 61643-21
• Standards/specifications
  • IEC 61643-21 2000
