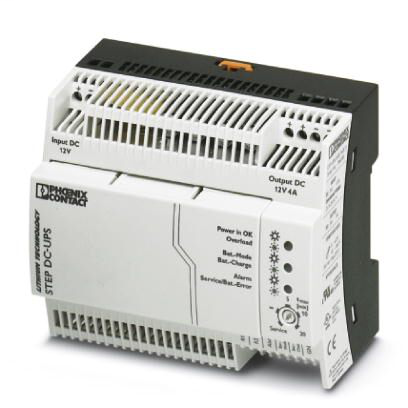

Phoenix Contact 2868693

Ambient conditions

• Ambient temperature (operation)
  • 0 °C - 40 °C
• Ambient temperature (storage/transport)
  • -20 °C - 45 °C
• Climatic class
  • 3K3 (in acc. with EN 60721)
• Degree of pollution
  • 2
• Degree of protection
  • IP20
• Max. permissible relative humidity (operation)
  • ≤ 95 % (at 25 °C, non-condensing)

Charging process

• Deep discharge protection
  • < 15 V DC
• Quality check of battery
  • Yes, every time it is charged and cyclically once a month

Conformance/approvals

• UL approvals
  • UL Listed UL 508
  • UL/C-UL Recognized UL 60950-1

Connection data for signaling

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Screw thread
  • M3
• Stripping length
  • 6.5 mm

Connection data, input

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 6.5 mm

Connection data, output

• Conductor cross section AWG max.
  • 12
• Conductor cross section AWG min.
  • 24
• Conductor cross section flexible max.
  • 2.5 mm²
• Conductor cross section flexible min.
  • 0.2 mm²
• Conductor cross section solid max.
  • 2.5 mm²
• Conductor cross section solid min.
  • 0.2 mm²
• Connection method
  • Screw connection
• Screw thread
  • M3
• Stripping length
  • 6.5 mm

Dimensions

• Depth
  • 61 mm
• Height
  • 90 mm
• Installation distance right/left
  • 0 mm / 0 mm
• Installation distance top/bottom
  • 0 mm / 0 mm
• Width
  • 108 mm

EMC data

• Comments
  • Criterion A
• Conducted interference
  • EN 61000-4-6
• Contact discharge
  • 6 kV (Test Level 3)
• Criterion A
  • Normal operating behavior within the specified limits.
• Criterion B
  • Temporary impairment to operational behavior that is corrected by the device itself.
• Discharge in air
  • 8 kV (Test Level 3)
• Electromagnetic compatibility
  • Conformance with EMC Directive 2014/30/EU
• Electromagnetic HF field
  • EN 61000-4-3
• Electrostatic discharge
  • EN 61000-4-2
• Fast transients (burst)
  • EN 61000-4-4
• Frequency range
  • 0.15 MHz - 80 MHz
  • 2 GHz - 3 GHz
  • 1 GHz - 2 GHz
  • 80 MHz - 1 GHz
• Input
  • 2 kV (Test Level 3 - asymmetrical)
  • 1 kV (Test Level 2 - symmetrical)
• I/O/S
  • asymmetrical
• Output
  • 1 kV (Test Level 2 - symmetrical)
  • 2 kV (Test Level 3 - asymmetrical)
• Signal
  • 1 kV (Test Level 2 - asymmetrical)
  • 2 kV (Test Level 4 - asymmetrical)
• Surge voltage load (surge)
  • EN 61000-4-5
• Test field strength
  • 10 V/m (Test Level 3)
• Voltage
  • 10 V (Test Level 3)

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 25;
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'
• REACh SVHC
  • Lead 7439-92-1

General output data

• Efficiency
  • > 97.4 % (Mains operation, with charged energy storage)

Input data

• Current consumption (charging process)
  • < 0.8 A (Charging (ICharge = max, IOut = 0))
• Current consumption (idle)
  • < 30 mA
• Current consumption (maximum)
  • 6 A
• Fixed backup threshold
  • < 10 V
• Input fuse, integrated
  • 7 A (slow-blow, internal)
• Input voltage
  • 12 V DC
• Input voltage range
  • 10 V DC - 16.5 V DC
• Nominal input voltage
  • 12 V DC
• Variable connect threshold
  • 1 V / 1 s

Output data (12 V DC battery operation)

• Nominal output current (IN)
  • 4 A (0 °C - 40 °C)
• Nominal output voltage
  • 12 V DC
• Output voltage range (depends on the input voltage)
  • 10 V DC - 15 V DC (UOut = UIn (t-₁))

Output data (12 V DC mains operation)

• Nominal output current (IN)
  • 4 A (0 °C - 40 °C)
• Nominal output voltage
  • 12 V DC

Standards

• EMC requirements for noise emission
  • EN 61000-6-4
  • EN 61000-6-3
• EMC requirements for noise immunity
  • EN 61000-6-1
  • EN 61000-6-2
• Standard - Electrical safety
  • EN 60950-1/VDE 0805 (SELV)
• Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations
  • EN 50178/VDE 0160 (PELV)
