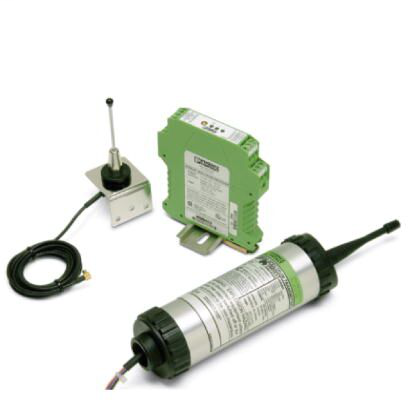

Phoenix Contact 2867432

Ambient conditions

• Ambient temperature (operation)
  • -40 °C - 70 °C
• Ambient temperature (storage/transport)
  • -40 °C - 85 °C
• Degree of protection
  • IP20

Analog input (sender)

• Current input signal
  • 4 mA - 20 mA
• Description of the input
  • Current input (analog input)
• Input resistance current input
  • < 170 Ω

Analog output (receiver)

• Current output signal
  • 4 mA - 20 mA
• Load/output load current output
  • 700 Ω (at UB = 24 V, RB = [UB-10 V] / 20 mA)
• Output name
  • Current output

Connection data

• Screw thread
  • M3

Digital input (sender)

• Input voltage range
  • 5 V AC/DC - 30 V AC/DC
• Switching threshold "0" signal, voltage
  • max. 1.5 V DC
• Switching threshold "1" signal voltage
  • min. 5 V DC

Digital output (receiver)

• Contact material
  • Ag, gold-plated
• Contact type
  • 3 floating PDT contacts
• Limiting continuous current
  • 0.5 A
• Maximum switching voltage
  • 30 V DC
  • 120 V AC
• Mechanical service life
  • 1x 10⁷
• Output name
  • 2 x relay output + 1 x RF link
• Service life, electrical
  • 8x 10⁵ cycles at a switching current of 0.5 A

Dimensions

• Depth
  • 114.5 mm
• Height
  • 99 mm
• Width
  • 17.5 mm

Environmental Product Compliance

• China RoHS
  • Environmentally Friendly Use Period = 50 years
  • For details about hazardous substances go to tab 'Downloads', Category 'Manufacturer's declaration'

Standards and Regulations

• Electromagnetic compatibility
  • FCC Part 15.247

Supply (receiver)

• Max. current consumption
  • 125 mA
• Supply voltage
  • 24 V DC (at UB)
• Supply voltage range
  • 12 V DC - 30 V DC
• Typical current consumption
  • 85 mA

Supply (sender)

• Max. current consumption
  • 350 mA
• Supply voltage
  • 24 V DC
• Supply voltage range
  • 9 V DC - 30 V DC
• Typical current consumption
  • 75 mA

Wireless path

• Direction
  • Uni-directional
• Frequency range
  • 915.1 MHz - 927.8 MHz
• Number of channel groups
  • 2
• Number of channels per group
  • 63
• Transmission power
  • 1 W

Wireless set

• Set contents
  • Transmitter, receiver
