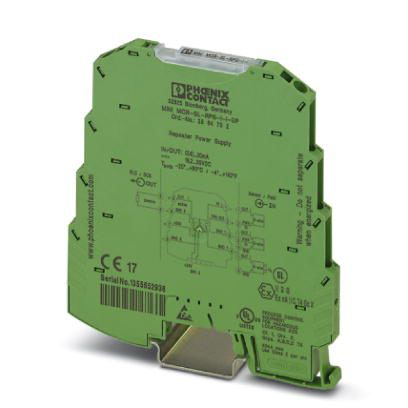

Phoenix Contact 2864752
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The item is temporarily not available. The download area includes a conversion table so you can find a suitable replacement item.MCR repeater power supply with spring-cage connection, input signal: (0)4...20 mA, output signal: (0)4...20 mARepeater power supply 2864752
Phoenix Contact 2864752 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Ambient conditions
- Ambient temperature (operation)
- -20 °C - 60 °C
- Ambient temperature (storage/transport)
- -40 °C - 85 °C
Connection data
- Conductor cross section AWG max.
- 12
- Conductor cross section AWG min.
- 24
- Conductor cross section flexible max.
- 2.5 mm²
- Conductor cross section flexible min.
- 0.2 mm²
- Conductor cross section solid max.
- 2.5 mm²
- Conductor cross section solid min.
- 0.2 mm²
- Connection method
- Spring-cage connection
- Stripping length
- 8 mm
Dimensions
- Depth
- 102.5 mm
- Height
- 93.1 mm
- Width
- 6.2 mm
EMC data
- Designation
- Conducted interferences
- Electromagnetic RF field
- Fast transients (burst)
- Standards/regulations
- EN 61000-4-6
- EN 61000-4-4
- EN 61000-4-3
- Typical deviation from the measuring range final value
- 10 %
- 10 %
- 10 %
Environmental Product Compliance
- China RoHS
- For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
- Environmentally Friendly Use Period = 50
Input data
- Current input signal
- 4 mA - 20 mA (repeater power supply and isolator operation)
- 0 mA - 20 mA (isolator operation)
- Description of the input
- Current input (sensor circuit)
- Input resistance current input
- approx. 50 Ω
- Max. input current
- 28 mA
- Number of inputs
- 1
- Transmitter supply voltage
- UB - max. 4.5 V for load 0 mA - 20 mA
- Transmitter supply voltage range
- 14.7 V DC - 25.5 V DC
Note
- Utilization restriction
- EMC: class A product, see manufacturer's declaration in the download area
Output data
- Current output signal
- 4 mA - 20 mA (repeater power supply and isolator operation)
- 0 mA - 20 mA (isolator operation)
- Load/output load current output
- ≤ 500 Ω (I = 20 mA)
- Max. output current
- 28 mA
- Number of outputs
- 1
- Output name
- Current output
- Ripple
- < 20 mVrms (at 500 Ω)
- Transmission Behavior
- 1:1 to input signal
Power supply
- Nominal supply voltage
- 24 V DC
- Power consumption
- < 600 mW (at 24 V DC and in isolator operation)
- < 900 mW (at 24 V DC and in repeater power supply operation)
- Supply voltage range
- 19.2 V DC - 30 V DC (The DIN rail bus connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, Order No. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail according to EN 60715))
Standards and Regulations
- ATEX
- II 3 G Ex nA IIC T4 Gc X
- Conformance
- CE-compliant
- Connection in acc. with standard
- CUL
- Designation
- Conducted interferences
- Electromagnetic RF field
- Electrical isolation
- Basic insulation according to EN 61010
- Electromagnetic compatibility
- Conformance with EMC directive
- Fire protection for rail vehicles (DIN EN 45545-2) R22
- HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R23
- HL 1 - HL 2
- Fire protection for rail vehicles (DIN EN 45545-2) R24
- HL 1 - HL 2
- GL
- GL EMC 2 D
- Noise emission
- EN 50081-2
- Standards/regulations
- EN 61000-4-2
- EN 61000-4-3
- EN 61000-4-5
- EN 61000-4-6
- EN 61000-4-4
- UL, USA/Canada
- Class I, Div. 2, Groups A, B, C, D T5
- UL 508 Recognized
